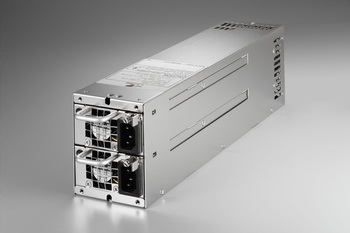

R2K-5800K2V(800W)
| 製品種別 | 電源 (Zippy) |
|---|---|
| 電源の種類 | N+1 Redundant |
| 製品説明 |
製品仕様
| wattage | 800W |
|---|---|
| solution | Server ,Workstation ,Storage System ,IPC |
| dimension_mm | 340x101x82 |
| dimension_inch | 13.39x3.98x3.23 |
| input_spec | Input：VOLTAGE: 90 ~ 264 VAC FULL RANGE.FREQUENCY: 47 ~ 63Hz.INPUT CURRENT: 6A (RMS) FOR 230 VAC / 12A (RMS) FOR 115 VACINRUSH CURRENT: 30A MAX. FOR 115 VAC PER MODULE / 60A MAX. FOR 230 VAC PER MODULEPFC CAN REACH THE TARGET OF 95% @230V, FULL LOAD |
| dc_output |
|
| features | * TEMPERATURE RANGE: OPERATING 0℃~40℃,STORAGE -20℃~80℃ * EFFICIENCY: TYPICAL 84.6% AT 230V AND FULL LOADING * OVER POWER PROTECTION: 110 ~ 160% MAX * OVER VOLTAGE PROTECTION: +5V → 5.8V ~ 6.5V, +3.3V → 3.9V ~ 4.3V, +12V → 13.3V ~ 15V * SHORT CIRCUIT PROTECTION: +5V, +12V, +3.3V, -12V / AUTO-RECOVERED: +5VSB * OVER CURRENT PROTECTION * EMI NOISE FILTER: FCC CLASS B, CISPR22 CLASS B * SAFETY: TO MEET UL&CUL, TUV, CCC * FAULTY ALARM METHODS: LED, BUZZER, TTL SIGNAL * HOT-SWAPPABLE/HOT PLUGGABLE REDUNDANCY FUNCTION * REMOTE ON/OFF CONTROL *THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS. |
| MTBF(RoHS)(PMBus NP1.2):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MTBF/R2K-5800K2V(PMBus%20NP1.2)(RoHS).pdf CB:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CB/KIN-G%20&%20R2K-G%20CB.pdf TUV:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/TUV/KIN-G%20&%20R2K-G%20TUV.pdf DRAWING:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/DRAWING/R2KKMA00.pdf CCC:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CCC/R2K-G2V%20&%20R2K-K2V%20CCC.pdf |
