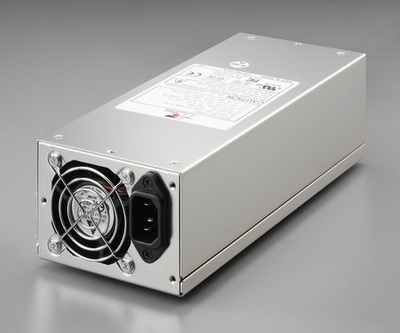

P2G-5650G(650W)
| 製品種別 | 電源 (Zippy) |
|---|---|
| 電源の種類 | 2U Single |
| 製品説明 |
製品仕様
| wattage | 650W |
|---|---|
| solution | Server ,Workstation ,Storage System ,IPC |
| dimension_mm | 240x100x70 |
| dimension_inch | 9.45x3.94x2.76 |
| input_spec | VOLTAGE: 90 ~ 264 VAC FULL RANGEFREQUENCY: 47 ~ 63 HZINPUT CURRENT: 10A(RMS) FOR 115VAC, 5A(RMS) FOR 230 VACINRUSH CURRENT: 50A MAX. FOR 115 VAC, 100A MAX. FOR 230 VACPOWER FACTOR CORRECTION: PFC CAN REACH THE TARGET OF 95% AT 115VAC, 90% AT 230VAC, FULL LOAD |
| dc_output |
* +5V, +3.3V AND +12V TOTAL MAX: 630W * TOTAL POWER: 650W |
| features | ‧TEMPERATURE RANGE: OPERATING 0℃ ~ 50℃, STORAGE –20℃ ~ 80℃ ‧HOLD UP TIME: 15 ms MINIMUM AT FULL LOAD & NORMAL INPUT VOLTAGE ‧EFFICIENCY: 87~90% TYPICAL AT 115V, FULL LOAD ‧LEAKAGE CURRENT: 3.5mA MAX. AT NOMINAL VOLTAGE VAC ‧POWER GOOD SIGNAL: ON DELAY 100 ms TO 500 ms, OFF DELAY 1 ms ‧OVER POWER PROTECTION: 110~160% ‧OVER VOLTAGE PROTECTION: +3.3V→3.6~4.3V, +5V→5.6~6.5V, +12V→13.2~15V ‧OVER CURRENT PROTECTOIN: +3.3V→27.5~40A, +5V→27.5~40A, +12V→52.8~72.8A ‧SHORT CIRCUIT PROTECTION ‧EMI: FCC CLASS B, CISPR22 CLASS B ‧SAFETY: TO MEET UL, CUL, TÜV, CCC ‧COOLING: ONE 60mm DC FAN ‧MEET IEC-1000-3-2 CLASS D *THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS. |
