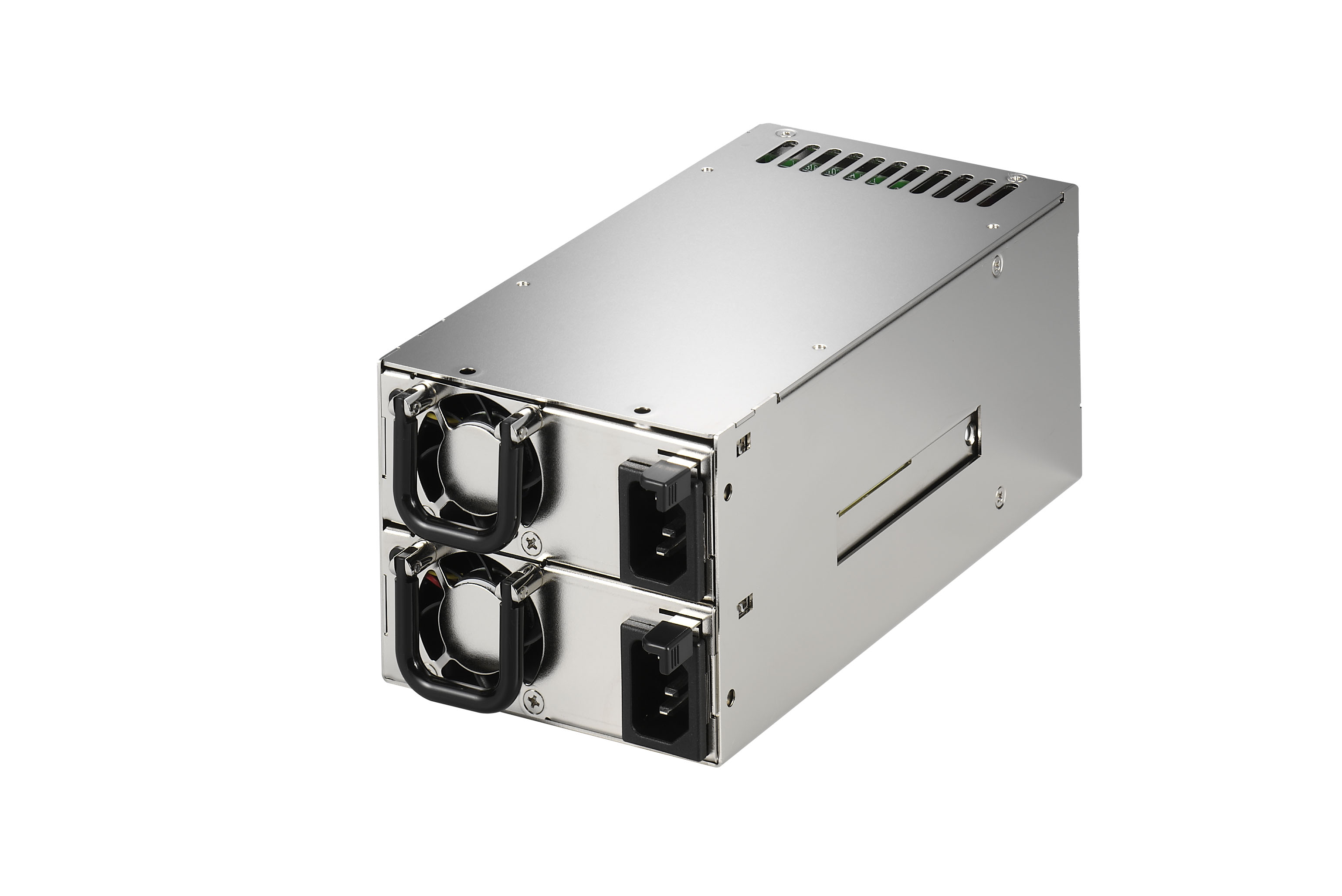

M1D2-5300V0V(300W)
| 製品種別 | 電源 (Zippy) |
|---|---|
| 電源の種類 | 2U Redundant |
| 製品説明 |
製品仕様
| wattage | 300W |
|---|---|
| solution | Server ,Workstation ,Storage System ,IPC ,Blade server ,PCs ,Communication ,Networking |
| dimension_mm | 170x101.2x84 |
| dimension_inch | 6.69x3.98x3.31 |
| input_spec | VOLTAGE： 90～264 Vac FULL RANGEFREQUENCY： 47～63 HzINPUT CURRENT：6A (RMS) FOR 115V / 3A (RMS) FOR 230VINRUSH CURRENT：15A MAX. FOR 115V / 30A MAX. FOR 230VPFC: Up to the target of 95% @115V, full load. |
| dc_output |
* TOTAL POWER: 300W (MAX) |
| features | * TEMPERATURE RANGE：OPERATING 0℃～50℃, STORAGE -20℃~80℃ * EFFICIENCY:The maximum power supply system efficiency shall be 82%, measured at nominal input voltage 230 V and full loading. * LEAKAGE CURRENT: 3.5 MA. MAX. AT NOMINAL VOLTAGE 240VAC * REMOTE ON/OFF CONTROL * OVER POWER PROTECTION：Trigger point total power MIN. 110%, MAX. 150%. * OVER VOLTAGE PROTECTION * SHORT CIRCUIT PROTECTION * OVER CURRENT PROTECTION * LEAKAGE CURRENT: From line to ground will be less than 3.5mA rms. Measurement will be made at 240 VAC and 60Hz. * SAFETY: TO MEET UL, CUL, TUV, CCC * WARNING METHOD: AUDIO ALARM(BUZZER SOUND, RESETABLE), FALUT LED, TTL * THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS. |
| CB:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CB/M1D-2500G%20and%20M1D2%20series%20CB.pdf TUV:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/TUV/M1D-2500G%20and%20M1D2%20series%20TUV.pdf CCC:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CCC/M1D2-G0V,%20GAV%20(500W%e4%bb%a5%e4%b8%8b)%20CCC.pdf DRAWING:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/DRAWING/M1D2GMA00.pdf |
