製品情報

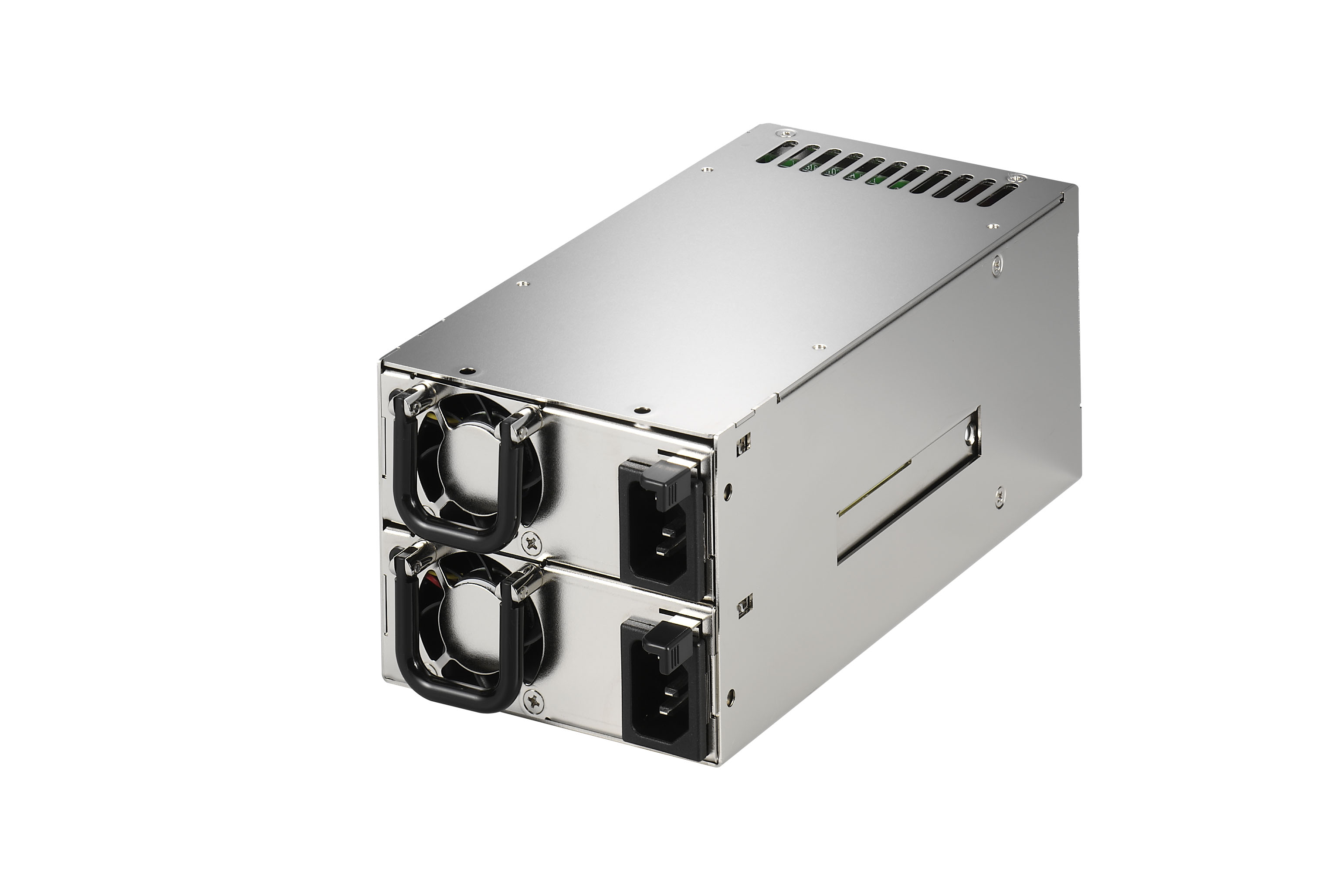

M1D2-5400V0V(400W)

製品種別 電源 (Zippy)
電源の種類 2U Redundant
製品説明

製品仕様

wattage 400W
solution Server ,Workstation ,Storage System ,IPC ,Blade server ,PCs ,Communication ,Networking
dimension_mm 170x101.2x84
dimension_inch 6.69x3.98x3.31
input_spec VOLTAGE: 90~264 Vac FULL RANGEFREQUENCY: 47~63 HzINPUT CURRENT:7A (RMS) FOR 115V / 3A (RMS) FOR 230VINRUSH CURRENT:15A MAX. FOR 115V / 30A MAX. FOR 230VPFC: Up to the target of 95% @115V, full load.
dc_output Output VoltageOutput Current Min.Output Current Max.Regulation LoadRegulation LineOutput Ripple & Noise Max.[P-P]+5V022±5%±1%50mV+12V233±5%±1% 120mV +3.3V022±5%±1%50mV-12V00.5±5%±1%120mV+5VSB0.13±5%±1%50mV
* +5V AND +3.3V Max. POWER: 150W
* TOTAL POWER: 400W (MAX)


features * TEMPERATURE RANGE:OPERATING 0℃~50℃, STORAGE -20℃~80℃
* EFFICIENCY:The maximum power supply system efficiency shall be 82%, measured at nominal input voltage 230 V and full loading.
* LEAKAGE CURRENT: 3.5 MA. MAX. AT NOMINAL VOLTAGE 240VAC
* REMOTE ON/OFF CONTROL
* OVER POWER PROTECTION:Trigger point total power MIN. 110%, MAX. 150%.
* OVER VOLTAGE PROTECTION
* SHORT CIRCUIT PROTECTION
* OVER CURRENT PROTECTION
* LEAKAGE CURRENT: From line to ground will be less than 3.5mA rms. Measurement will be made at 240 VAC and 60Hz.
* SAFETY: TO MEET UL, CUL, TUV, CCC
* WARNING METHOD: AUDIO ALARM(BUZZER SOUND, RESETABLE), FALUT LED, TTL

* THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS.
pdf CB:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CB/M1D-2500G%20and%20M1D2%20series%20CB.pdf TUV:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/TUV/M1D-2500G%20and%20M1D2%20series%20TUV.pdf CCC:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CCC/M1D2-G0V,%20GAV%20(500W%e4%bb%a5%e4%b8%8b)%20CCC.pdf DRAWING:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/DRAWING/M1D2GMA00.pdf
