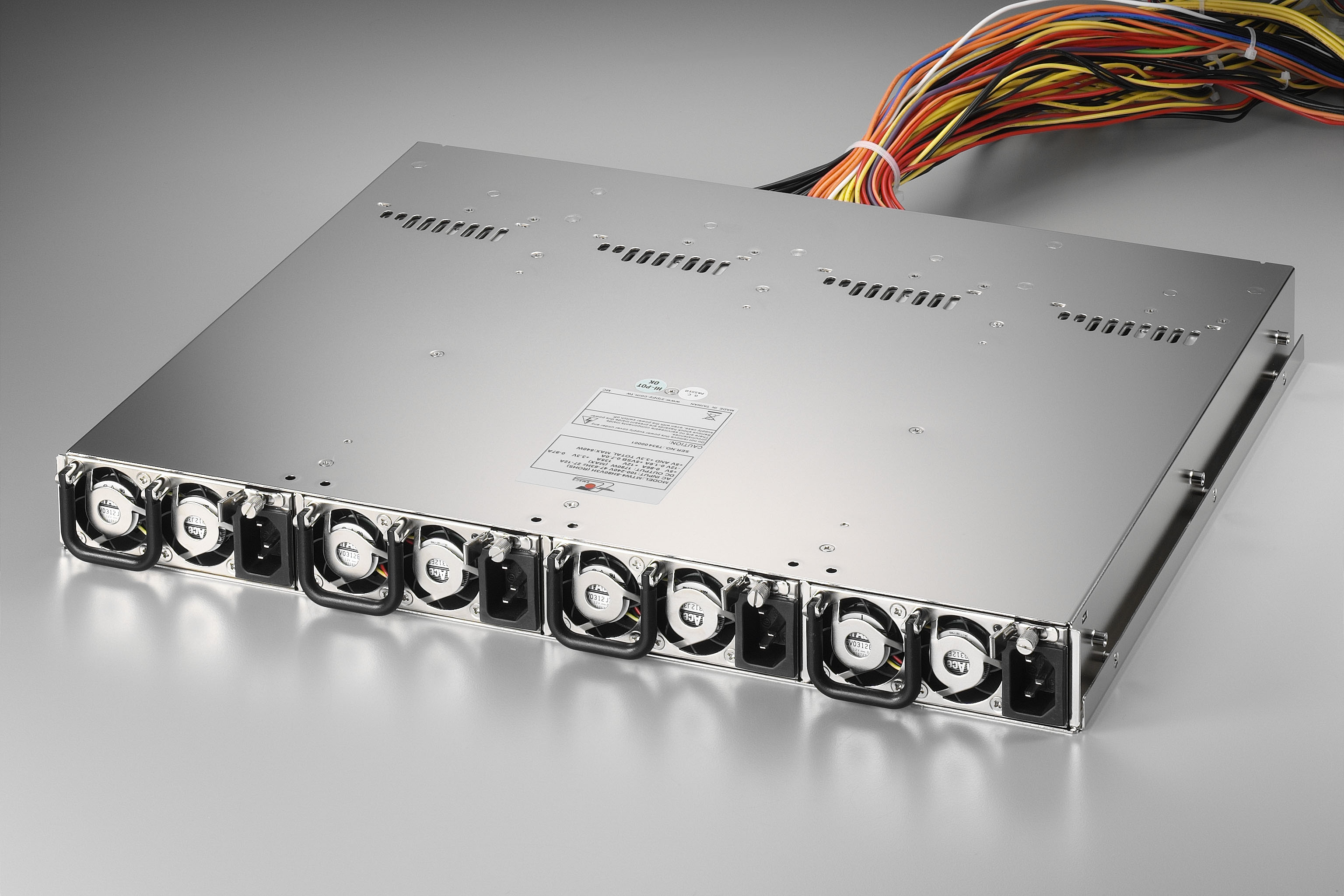

G1W4-5BG0V2H(2700W)

製品種別 電源 (Zippy)
電源の種類 N+1 Redundant
製品説明

製品仕様

wattage 2700W
solution Server ,Workstation ,Storage System ,IPC
dimension_mm 340x422x43
dimension_inch 13.39x16.61x1.69
input_spec VOLTAGE： 90～264VAC FULL RANGEFREQUENCY： 47～63HZINPUT CURRENT: 38A (RMS) FOR 115V / 19A (RMS) FOR 230VINRUSH CURRENT (PER POWER MODULE)：60/80 AMPS@115/230 VAC (at 25 degrees ambient cold start for each power unit)PFC: Up to the target of 95% @115/230VAC, full load
dc_output Output VoltageOutput Current Min.Output Current Max.Regulation LoadRegulation LineOutput Ripple & Noise Max.[P-P]+5V0.532±5%±1%50mV+12V6225±5%±1% 120mV -12V01±5%±1%120mV+3.3V0.532±5%±1%50mV+5VSB0.26±5%±1%50mV
1. The output current of +5V and +3.3V not exceed 190W 2. Total power: 2700W (MAX)

features * TEMPERATURE RANGE：OPERATING 0℃～40℃, STORAGE -20℃~80℃
* EFFICIENCY：SHALL BE > 80% AT 230V FULL LOADING
* OVER POWER PROTECITON: 110~160%
* OVER VOLTAGE PROTECTION
* OVER CURRENT PROTECTION
* REMOTE ON/OFF CONTROL
* FAULTY ALARM METHODS: LED, BUZZER, TTL SIGNAL
* EMI NOISE FILTER: FCC CLASS B , CISPR 22 CLASS B
* MEET IEC 61000-3-2 CLASS D (ACTIVE PFC)
* SAFETY：TO MEET UL, CUL, TUV, CCC

*THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS.
pdf MTBF(RoHS):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MTBF/G1W4-5BG0V2H(RoHS).pdf
