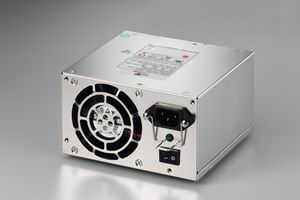

HG2-5500E(500W)

製品種別 電源 (Zippy)
電源の種類 PS2
製品説明

製品仕様

wattage 500W
solution Server ,Workstation ,PCs
dimension_mm 140x150x86
dimension_inch 5.51x5.91x3.39
input_spec VOLTAGE: 90~264 VAC FULL RANGEFREQUENCY: 47~63 HzINPUT CURRENT: 7A/3.5A FOR 115/230VACINRUSH CURRENT: 35/80 AMPS @ 115/230VACPFC:Up to the target of 95% @115/230VAC, full load.
dc_output Output VoltageOutput Current Min.Output Current Max.Regulation LoadRegulation LineOutput Ripple & Noise Max.[P-P]+5V023±5%±1%50mV+12V0.541±5%±1% 120mV -12V00.5±5%±1%120mV+3.3V018±5%±1%50mV+5VSB03±5%±1%50mV
The output current of +5V and +3.3V not exceed 125W. Total power: 500W (MAX)

features *TEMPERATURE RANGE: OPERATING 0℃ ~ 50℃, STORAGE -20℃ ~ 80℃
*HOLD UP TIME: 15ms MINIMUM AT FULL LOAD & NORMAL INPUT VOLTAGE
*EFFICIENCY: 86% TYPICAL AT 115V FULL LOAD
*OVER POWER PROTECTOIN
*OVER VOLTAGE PROTECTOIN
*SHORT CIRCUIT PROTECTION
*OVER CURRENT PROTECTION
*SAFETY: TO MEET UL, CUL, TUV, CCC


*THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS.
pdf MTBF(RoHS):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MTBF/HG2-5500E(RoHS).pdf CB:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CB/HG2-E%20CB.pdf TUV:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/TUV/HG2-E%20TUV.pdf CCC:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CCC/HG2-E%20CCC.pdf
