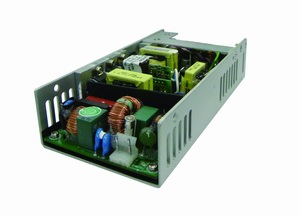

Q1S-1150V24(150W)
| 製品種別 | 電源 (Zippy) |
|---|---|
| 電源の種類 | Open Frame |
| 製品説明 |
製品仕様
| wattage | 150W |
|---|---|
| solution | Server ,Workstation ,Storage System ,IPC |
| dimension_mm | 127x76.2x39.6 |
| dimension_inch | 5x3x1.56 |
| input_spec | VOLTAGE： 90～264VAC FULL RANGEFREQUENCY： 47～63HzINPUT CURRENT：2A (RMS) FOR 115 VAC / 1A (RMS) FOR 230 VACINRUSH CURRENT：40A MAX. FOR 115 VAC / 80A MAX. FOR 230 VAC |
| dc_output |
|
| features | ‧TEMPERATURE RANGE：OPERATING 0℃～40℃, STORAGE -20℃~80℃ ‧EFFICIENCY：TYPICAL 86% AT 115V, 24V/6.25A AND 87% AT 230V, 24V/6.25A ‧OVER POWER PROTECTION：105%～150% MAX ‧OVER VOLTAGE PROTECTION ‧OVER CURRENT PROTECTION ‧SHORT CIRCUIT PROTECTION ‧SAFETY : TO MEET UL, CUL, TUV, CCC *THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS. |
| MTBF(RoHS):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MTBF/Q1S-1150V24(RoHS).pdf DRAWING:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/DRAWING/Q1S0MA00.pdf |
