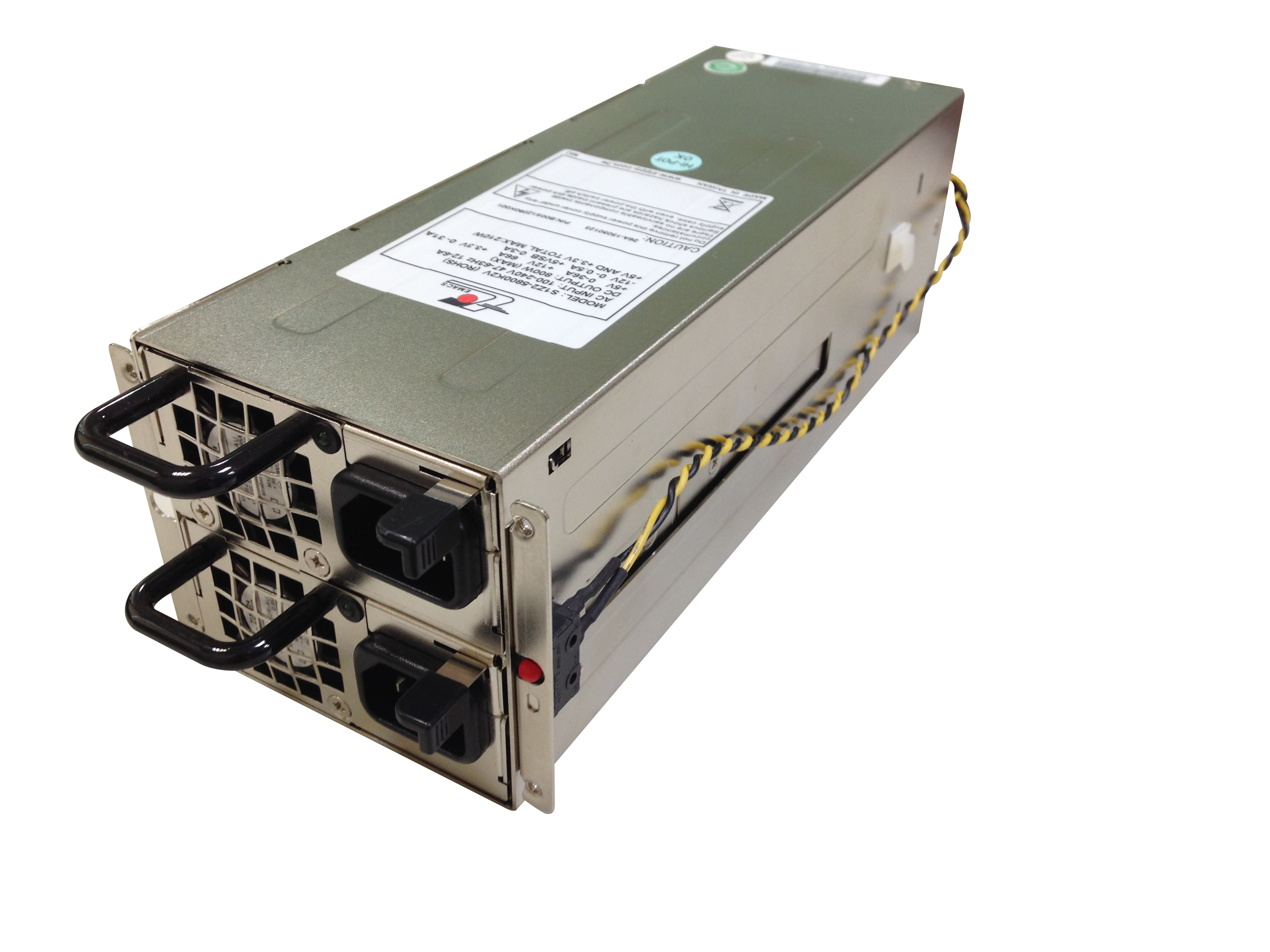

S1Z2-5600K2V(600W)

製品種別 電源 (Zippy)
電源の種類 N+1 Redundant
製品説明

製品仕様

wattage 600W
solution Server ,Workstation ,IPC ,Blade server ,Communication
dimension_mm 240x85x83
dimension_inch 9.45x3.35x3.27
input_spec VOLTAGE: 90 ~ 264 VAC FREQUENCY: 47 ~ 63 Hz. STEADY-STATE CURRENT: 10A/5A MAX.(RMS) FOR 115/230 VAC INRUSH CURRENT: 15A/30A MAX.FOR 115/230 VAC PER MODULE (at 25 degrees ambient cold start for each power unit)POWER FACTOR CORRECTION: PFC CAN REACH THE TARGET OF 95% AT 230V, FULL LOAD
dc_output Output VoltageOutput Current Min.Output Current Max.Regulation LoadRegulation LineOutput Ripple & Noise Max.[P-P]+5V036±5%±1%±50mV+3.3V031±5%±1% ±50mV +12V250±5%±1%±120mV-12V00.5±5%±1%±120mV+5VSB0.13±5%±1%±50mV
+5V and +3.3V Max. Power: 210W Total Power: 600W(MAX)

features * TEMPERATURE RANGE: OPERATING 0℃ ~ 50℃, STORAGE -20℃~80℃
* EFFICIENCY: SHALL BE 88% @230V, FULL LOADING
* OVER POWER PROTECTION: 105~150%
* OVER VOLTAGE PROTECTION: +12V→+12.8V~+15.6V; +5V→+5.7V~+6.5V; +3.3V→+3.7V~+4.1V
* OVER CURRENT PROTECTION: +12V: 110~150%
* SHORT CIRCUIT PROTECTION
* EMI NOISE FILTER: FCC CLASS A, CISPR22 CLASS A
* MEET SAFETY: UL, CUL, TUV, CCC

* THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS.
pdf MTBF(RoHS)(PMBus NP1.2):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MTBF/S1Z2-5600K2V(PMBus%20NP1.2)(RoHS).pdf DRAWING:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/DRAWING/S1Z2KMA00.pdf CB:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CB/S1Z%20and%20S1Z2%20%20CB.pdf TUV:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/TUV/S1Z%20and%20S1Z2%20%20TUV.pdf
