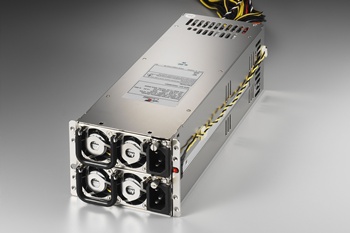

MTW2-5AD0B2V(1400W)

製品種別 電源 (Zippy)
電源の種類 2U Redundant
製品説明

製品仕様

wattage 1400W
solution Server ,Workstation ,Storage System ,Blade server ,Communication
dimension_mm 300x101x84
dimension_inch 11.81x3.98x3.31
input_spec VOLTAGE： 104～264VAC FULL RANGEFREQUENCY： 47～63HzINPUT CURRENT (PER POWER MODULE)：15A/10A FOR 115/230VACINRUSH CURRENT (PER POWER MODULE)：40A/80A MAX. FOR 115/230VAC (25℃)
dc_output Output VoltageOutput Current Min.Output Current Max.Regulation LoadRegulation LineOutput Ripple & Noise Max.[P-P]+5V0.550±5%±1%50mV+12V1.0100±5%±1% 120mV -12V00.5±5%±1%120mV+3.3V0.512±5%±1%50mV+5VSB0.13±5%±1%50mV
TOTAL POWER: 1400W (MAX) 115VAC TOTAL POWER: 1200W (MAX)

features * TEMPERATURE RANGE：OPERATING 0℃～50℃, STORAGE -20℃~80℃
* EFFICIENCY：80% AT 115/230VAC, FULL LOAD
* POWER GOOD SIGNAL：ON DELAY 100mS TO 500Ms
* OVER POWER PROTECTION: 110~160%
* OVER VOLTAGE PROTECTION：+3.3V→3.6V～4.6V，+5V→5.5V～6.9V ，+12V→13.2V～16.4V
* OVER CURRENT PROTECTION: +5V,+12V,+3.3V:110~160%
* SHORT CIRCUIT PROTECTION: +5V, +3.3V, +12V, -12V
* REMOTE ON/OFF CONTROL
* SAFETY：TO MEET UL, TUV, CCC


*THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS.
pdf MTBF(RoHS):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MTBF/MTW2-5AD0B2V(RoHS).pdf DRAWING:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/DRAWING/MTW2BMA00.pdf
