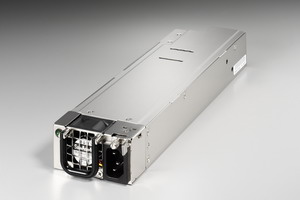

GIN-3800V(800W)
| 製品種別 | 電源 (Zippy) |
|---|---|
| 電源の種類 | Redundant module |
| 製品説明 |
製品仕様
| wattage | 800W |
|---|---|
| solution | Server ,Workstation ,Storage System ,Communication ,Networking |
| dimension_mm | 305x79x40 |
| dimension_inch | 12.01x3.11x1.57 |
| input_spec | VOLTAGE： 90～264VAC FULL RANGE FREQUENCY： 47～63HZ INPUT CURRENT：6A（RMS）FOR 230VAC, 12A（RMS）FOR 115VAC INRUSH CURRENT：60A MAX. FOR 115 VAC PER MODULE, 80A MAX. FOR 230 VAC PER MODULE |
| dc_output |
|
| features | * TEMPERATURE RANGE：OPERATING 0℃～40℃，STORAGE -20℃～80℃ * HOLD UP TIME：WHEN POWER SHUTDOWN DC OUTPUT 12V MUST BE MAINTAIN 16mSEC IN REGULATON LIMIT AT NORMAL INPUT VOLTAGE. * DIELECTRIC WITHSTAND：INPUT/OUTPUT 1500 VAC FOR 1 minute INPUT TO FRAME GROUND 1500 VAC FOR 1 minute * EFFICIENCY：TYPICAL >80% at 115V, 20%~100% MAX LOAD * POWER GOOD SIGNAL：ON DELAY 100mS TO 500mS，OFF DELAY 1Ms * OVER POWER PROTECTION：110～160% MAX * OVER VOLTAGE PROTECTION： +12V→13.3V~14.3V * SHORT CIRCUIT PROTECTION: +12V, -12V, AUTO-RECOVERED: +5VSB * SAFETY：TO MEET UL, TUV, CB *THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS. |
| MTBF(ROHS):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MTBF/GIN-3800V(RoHS).pdf CB:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CB/GIN-3800V,%20R2G-V,%20R3G-V,%20GIN1%20CB.pdf TUV:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/TUV/GIN-3800V,%20R2G-V,R3G-V,GIN1,%20R2K%20TUV.pdf DRAWING:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/DRAWING/GINVMA00.pdf CCC:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CCC/GIN-3800V,%20R2G-V,%20GIN1,%20R2K%20CCC.pdf BSMI:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/BSMI/GIN-3800V,%20R2G-5800V%20BSMI.pdf MTBF(RoHS)(35℃):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MTBF/GIN-3800V(RoHS)(35%e2%84%83).pdf MTBF(RoHS)(40℃):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MTBF/GIN-3800V(RoHS)(40%e2%84%83).pdf |
