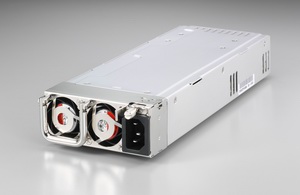

M1W-2810V(810W)

製品種別 電源 (Zippy)
電源の種類 Redundant module
製品説明

製品仕様

wattage 810W
solution Server ,Workstation ,Storage System ,Communication ,Networking
dimension_mm 265.3x98.4x40
dimension_inch 10.44x3.87x1.57
input_spec VOLTAGE: 90~264VAC FULL RANGE FREQUENCY: 47~63HZ INPUT CURRENT:12A (RMS) FOR 115 VAC 6A (RMS) FOR 230 VAC INRUSH CURRENT:15A MAX. FOR 115 VAC 30A MAX. FOR 230 VAC
dc_output Output VoltageOutput Current Min.Output Current Max.Regulation LoadRegulation LineOutput Ripple & Noise Max.[P-P]+12V266±5%±1%120mV+5VSB0.14±5%±1% 50mV


features * TEMPERATURE RANGE:OPERATING 0℃~50℃
* HOLD UP TIME:16mS MINIMUM AT FULL LOAD & NOMINAL INPUT VOLTAGE
* DIELECTRIC WITHSTAND:INPUT/OUTPUT 1800 VAC FOR 1 SECOND INPUT TO FRAME GROUND 1800 VAC FOR 1 SECOND
* EFFICIENCY:84% TYPICAL,AT 115Vac FULL LOAD, 87% TYPICAL,AT 230Vac FULL LOAD
* POWER GOOD SIGNAL:ON DELAY 100mS TO 500mS,OFF DELAY 1mS OVERLOAD PROTECTION:110~150% MAX
* OVER VOLTAGE PROTECTION: +12V→13.2V~15V
* SHORT CIRCUIT PROTECTION: +12V
* EMI NOISE FILTER : FCC CLASS B, CISPR22 CLASS B
* SAFETY : TO MEET UL, CUL, TUV
* REMOTE ON/OFF CONTROL
* THE POWER SUPPLY SHALL ACCEPT A LOGIC OPEN COLLECTOR LEVEL WHICH WILL DISABLE/ENABLE ALL THE OUTPUT VOLTAGE (EXCLUDE +5V STAND BY). AS LOGIC LEVEL IS LOW,OUTPUTS VOLTAGE WERE ENABLE, AS LOGIC LEVEL IS HIGH,OUTPUTS VOLTAGE WERE DISABLE.
* COOLING : TWO 38mm DC FANS
* MEET IEC-1000-3-2 CLASS D


*THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS.
pdf DRAWING:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/DRAWING/M1WVMA00.pdf CB:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CB/M1W-2810V,M1W2-V,M1W4-V%20CB.pdf TUV:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/TUV/M1W-2810V,M1W2-V,M1W4-V%20TUV.pdf CCC:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CCC/M1W-2810V,M1W2-V,M1W4-V%20CCC.pdf MTBF(ROHS):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MTBF/M1W-2810V(RoHS).pdf BSMI:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/BSMI/M1W-2810V,M1W2-V%20BSMI.pdf MTBF(RoHS)(40℃):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MTBF/M1W-2810V(RoHS)(40%e2%84%83).pdf
