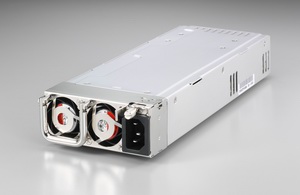

M1W-2910V(910W)
| 製品種別 | 電源 (Zippy) |
|---|---|
| 電源の種類 | Redundant module |
| 製品説明 |
製品仕様
| wattage | 910W |
|---|---|
| solution | Server ,Workstation ,Storage System ,Communication ,Networking |
| dimension_mm | 265.3x98.4x40 |
| dimension_inch | 10.44x3.87x1.57 |
| input_spec | VOLTAGE： 90～264VAC FULL RANGE FREQUENCY： 47～63HZ INPUT CURRENT：12A (RMS) FOR 115 VAC 6A (RMS) FOR 230 VAC INRUSH CURRENT：15A MAX. FOR 115 VAC 30A MAX. FOR 230 VAC |
| dc_output |
|
| features | * TEMPERATURE RANGE：OPERATING 0℃～50℃ * HOLD UP TIME：16mS MINIMUM AT FULL LOAD & NOMINAL INPUT VOLTAGE * DIELECTRIC WITHSTAND：INPUT/OUTPUT 1800 VAC FOR 1 SECOND INPUT TO FRAME GROUND 1800 VAC FOR 1 SECOND * EFFICIENCY：84% TYPICAL，AT 115Vac FULL LOAD, 87% TYPICAL，AT 230Vac FULL LOAD * POWER GOOD SIGNAL：ON DELAY 100mS TO 500mS，OFF DELAY 1mS OVERLOAD PROTECTION：110～150% MAX * OVER VOLTAGE PROTECTION： +12V→13.2V～15V * SHORT CIRCUIT PROTECTION： +12V * EMI NOISE FILTER : FCC CLASS B, CISPR22 CLASS B * SAFETY : TO MEET UL, CUL, TUV * REMOTE ON/OFF CONTROL * THE POWER SUPPLY SHALL ACCEPT A LOGIC OPEN COLLECTOR LEVEL WHICH WILL DISABLE/ENABLE ALL THE OUTPUT VOLTAGE (EXCLUDE +5V STAND BY). AS LOGIC LEVEL IS LOW，OUTPUTS VOLTAGE WERE ENABLE， AS LOGIC LEVEL IS HIGH，OUTPUTS VOLTAGE WERE DISABLE. * COOLING : TWO 38mm DC FANS * MEET IEC-1000-3-2 CLASS D *THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS. |
| CB:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CB/M1W-2810V,M1W2-V,M1W4-V%20CB.pdf TUV:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/TUV/M1W-2810V,M1W2-V,M1W4-V%20TUV.pdf CCC:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CCC/M1W-2810V,M1W2-V,M1W4-V%20CCC.pdf MTBF(ROHS):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MTBF/M1W-2910V(RoHS).pdf BSMI:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/BSMI/M1W-2810V,M1W2-V%20BSMI.pdf |
