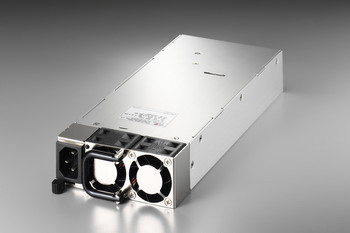

S1M-5500V(500W)
| 製品種別 | 電源 (Zippy) |
|---|---|
| 電源の種類 | Redundant module |
| 製品説明 |
製品仕様
| wattage | 500W |
|---|---|
| solution | Server ,Workstation ,Storage System |
| dimension_mm | 247.9x106x40 |
| dimension_inch | 9.76x4.17x1.57 |
| input_spec | VOLTAGE： 90～264VAC FULL RANGE FREQUENCY： 47～63HZ INPUT CURRENT：4A（RMS）FOR 230VAC, 8A（RMS）FOR 115VAC INRUSH CURRENT：40A MAX. FOR 115 VAC PER MODULE, 60A MAX. FOR 230 VAC PER MODULE |
| dc_output |
|
| features | * TEMPERATURE RANGE：OPERATING 0℃～40℃，STORAGE -20℃～80℃ * HOLD UP TIME：16mS MIN. AT FULL LOAD & 90 VAC INPUT VOLTAGE * DIELECTRIC WITHSTAND：INPUT/OUTPUT 1500 VAC FOR 1 minute INPUT TO FRAME GROUND 1500 VAC FOR 1 minute * EFFICIENCY：80% TYPICAL AT 115V, 82% TYPICAL AT 230V, FULL LOAD * POWER GOOD SIGNAL：ON DELAY 100mS TO 500mS，OFF DELAY 1mS * OVER POWER PROTECTION：110～160% MAX * OVER VOLTAGE PROTECTION：+5V→5.7V～6.5V，+3.3V→3.7V～4.1V ，+12V→12.8V～13.9V * OVER CURRENT PROTECTION: +5V, +12V, +3.3V: 110~150% * SHORT CIRCUIT PROTECTION: +5V, +3.3V, +12V, AUTO-RECOVERED: -12V, +5VSB * EMI : FCC CLASS B , CISPR 22 CLASS B * SAFETY：TO MEET UL, CUL, TUV * FAULTY ALARM METHODS: TTL SIGNAL * REMOTE SENSING DESIGN * REMOTE ON/OFF CONTROL * ISOLATION: BUILT-IN THE POWER MODULE * COOLING: TWO 40x40x28mm DC FANS * AC INLET IN EACH MODULE *THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS. |
| DRAWING:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/DRAWING/S1MVMA00.pdf CB:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CB/S1M-V%20CB.pdf TUV:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/TUV/S1M-V%20TUV.pdf CCC:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CCC/S1M-V%20CCC.pdf MTBF(RoHS):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MTBF/S1M-5500V(RoHS).pdf CE:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CE/S1M-5500V%20(Radiation).pdf FCC:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/FCC/S1M-5500V%20FCC.pdf |
