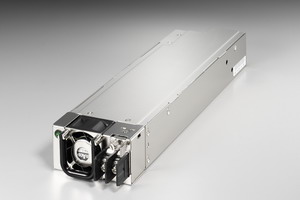

DGIN-3800V(800W)
| 製品種別 | 電源 (Zippy) |
|---|---|
| 電源の種類 | Redundant module DC |
| 製品説明 |
製品仕様
| wattage | 800W |
|---|---|
| solution | Server ,Workstation ,Storage System ,IPC ,Blade server |
| dimension_mm | 305x79x40 |
| dimension_inch | 12.01x3.11x1.57 |
| input_spec | VOLTAGE: DC -39 V~ -72 V STEADY-STATE CURRENT: 21 A ( RMS ) AT -48VDC INRUSH CURRENT: 70A AT -48VDC (AT 25 DEGREES AMBIENT COLD START) |
| dc_output |
|
| features | * TEMPERATURE RANGE: OPERATING: 0℃ --- 50℃, STORAGE: -20℃ --- 80℃ * HOLD UP TIME: 1.6 ms MINIMUM AT FULL LOAD & NORMAL INPUT VOLTAGE * DIELECTRIC WITHSTAND: INPUT / OUTPUT 1500 VAC FOR 1 SECOND INPUT TO FRAME GROUND 1500 VAC FOR 1 SECOND * EFFICIENCY: >80% AT -48VDC, FULL LOAD * POWER GOOD SIGNAL: ON DELAY 100 ms TO 500 ms, OFF DELAY 1 ms * OVER POWER PROTECTION: 110% ~ 160% * SHORT CIRCUIT PROTECTION: +12V, -12V, AUTO-RECOVERED: +5VSB * OVER VOLTAGE PROTECTION: +12V→ 13.3~15V * EMI NOISE FILTER: FCC CLASS A, CISPR22 CLASS A * SAFETY: TO MEET UL, TÜV * REMOTE ON / OFF CONTROL THE UNIT SHALL ACCEPT A LOGIC OPEN COLLECTOR LEVEL WHICH WILL DISABLE / ENABLE ALL THE OUTPUT VOLTAGE (EXCLUDE +5V STANDBY), AS LOGIC LEVEL IS LOW, OUTPUTS VOLTAGE WERE ENABLE, AS LOGIC LEVEL IS HIGH, OUTPUTS VOLTAGE WERE DISABLE. * COOLING: ONE 40mm DC FAN *THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS. |
| CB:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CB/DGIN-3800V,DR2G,DGIN1-V%20CB.pdf DRAWING:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/DRAWING/DGINVMA00.pdf TUV:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/TUV/DGIN-3800V,DR2G,DGIN1-V%20TUV.pdf DRAWING:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/DRAWING/DGINVMA02.pdf MTBF(RoHS):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MTBF/DGIN-3800V(RoHS).pdf |
