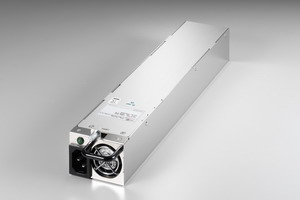

SPH-2A00V(1000W)
| 製品種別 | 電源 (Zippy) |
|---|---|
| 電源の種類 | Redundant module |
| 製品説明 |
製品仕様
| wattage | 1000W |
|---|---|
| solution | Server ,Workstation ,Storage System |
| dimension_mm | 335x61x45 |
| dimension_inch | 13.19x2.4x1.77 |
| input_spec | VOLTAGE： 90～264VAC FULL RANGE FREQUENCY： 47～63HZ INPUT CURRENT：12A (RMS) FOR 115 VAC 6A (RMS) FOR 230 VAC INRUSH CURRENT：15A MAX. FOR 115 VAC 30A MAX. FOR 230 VAC |
| dc_output |
|
| features | * TEMPERATURE RANGE：OPERATING 0℃～50℃ * HOLD UP TIME：16mS MINIMUM * DIELECTRIC WITHSTAND：INPUT/OUTPUT 1800 VAC FOR 1 SECOND INPUT TO FRAME GROUND 1800 VAC FOR 1 SECOND * EFFICIENCY：83% TYPICAL，AT 115Vac FULL LOAD 86% TYPICAL，AT 230Vac FULL LOAD * POWER GOOD SIGNAL：ON DELAY 100mS TO 500mS * OVERLOAD PROTECTION：110～150% MAX * OVER VOLTAGE PROTECTION： +12V→13.2V～15V * SHORT CIRCUIT PROTECTION： +12V * EMI NOISE FILTER : FCC CLASS B, CISPR22 CLASS B * SAFETY : UL 60950, CSA 22.2 NO 60950, TUV IEC 60950 * EMI NOISE FILTER: FCC CLASS A , CISPR 22 CLASS A * REMOTE ON/OFF CONTROL THE POWER SUPPLY SHALL ACCEPT A LOGIC OPEN COLLECTOR LEVEL WHICH WILL DISABLE/ENABLE ALL THE OUTPUT VOLTAGE (EXCLUDE +5V STAND BY). AS LOGIC LEVEL IS LOW，OUTPUTS VOLTAGE WERE ENABLE， AS LOGIC LEVEL IS HIGH，OUTPUTS VOLTAGE WERE DISABLE. * COOLING : One 38mm DC FANS * DIMENSION： 335mm(L)×61mm(W)×45mm(H)(+/-0.5mm) * MEET IEC-1000-3-2 CLASS D *THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS. |
| MTBF(RoHS):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MTBF/SPH-2A00V(RoHS).pdf CB:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CB/SPH,%20SPG,%20PSS%20series%20CB.pdf TUV:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/TUV/SPH,%20SPG,%20PSS%20series%20TUV.pdf BSMI:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/BSMI/SPH2,%20SPG2,%20PSS2%20series%20BSMI.pdf CCC:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CCC/SPH,%20SPG,%20PSS,%20PSG%20series%20CCC.pdf |
