製品情報

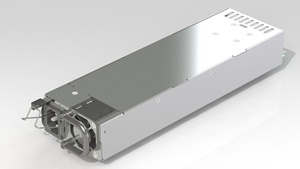

ATN-5400V(400W)

製品種別 電源 (Zippy)
電源の種類 Redundant module
製品説明

製品仕様

wattage 400W
solution Server ,Workstation ,Storage System ,IPC
dimension_mm 265x79x40.5
dimension_inch 10.43x3.11x1.59
input_spec VOLTAGE: 90 ~ 264 VAC FULL RANGE. FREQUENCY: 47 ~ 63 Hz. INPUT CURRENT: 6/3 AMPS MAXIMUM AT ANY LOW/HIGH RANGE INPUT VOLTAGE INRUSH CURRENT: 25A MAX. FOR 110 VAC PER MODULE, 50A MAX. FOR 220 VAC PER MODULE POWER FACTOR CORRECTION: PFC CAN REACH THE TARGET OF 95% @ 115V, FULL LOAD, FOLLOWING THE STANDARD OF IEC 1000-3-2
dc_output Output VoltageOutput Current Min.Output Current Max.Regulation LoadRegulation LineOutput Ripple & Noise Max.[P-P]+5V1.032±5%±1%50mV+12V2.033±5%±1% 120mV -12V0.00.5±5%±1%120mV+3.3V1.025.0±5%±1%50mV+5VSB0.13.5±5%±1%50mV
* POWER MODULE TOTAL OUTPUT POWER OF +5V AND +3.3V NOT EXCEED 170W
* TOTAL OUTPUT POWER NOT EXCEED 400W


features * TEMPERATURE RANGE: OPERATING 0℃ ~ 40℃, STORAGE –20℃ ~ 80℃
* HOLD UP TIME: 16 ms MINIMUM AT FULL LOAD & 90 VAC INPUT VOLTAGE
* EFFICIENCY: 86%(MAX)
* POWER GOOD SIGNAL: ON DELAY 100 ms TO 500 ms, OFF DELAY 1 ms
* OUTPUT PROTECTION: OPP / OVP / OCP / SCP
* FAULTY ALARM METHODS: LED, BUZZER, TTL SIGNAL
* HOT-SWAPPABLE/HOT PLUGGABLE REDUNDANCY FUNCTION
* ISOLATION: BUILT-IN THE POWER MODULE
* REMOTE SENSING DESIGN
* SAFETY: TO MEET UL, CUL, TUV, CCC, RFI/EMI STANDARDS

* THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS.
pdf CE:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CE/ATN-5400V%20(Radiation).pdf FCC:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/FCC/ATN-5400V%20FCC.pdf MTBF(RoHS):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MTBF/ATN-5400V(RoHS).pdf CB:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CB/ATN-V%20CB.pdf TUV:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/TUV/ATN-V%20TUV.pdf BSMI:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/BSMI/ATN-V%20BSMI.pdf CCC:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CCC/ATN-V%20CCC.pdf
