製品情報

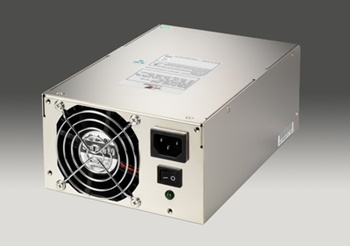

PSL-6800P(800W)

製品種別 電源 (Zippy)
電源の種類 PS2+
製品説明

製品仕様

wattage 800W
solution Server ,Workstation ,Storage System ,IPC
dimension_mm 220x150x86
dimension_inch 8.66x5.9x3.39
input_spec VOLTAGE: 90 ~ 264 VAC FULL RANGE. FREQUENCY: 47 ~ 63 Hz. INPUT CURRENT: 6A (RMS) FOR 230 VAC 13.5A (RMS) FOR 115 VAC INRUSH CURRENT: 75A MAX. FOR 115 VAC 150A MAX. FOR 230 VAC
dc_output Output VoltageOutput Current Min.Output Current Max.Regulation LoadRegulation LineOutput Ripple & Noise Max.[P-P]+5V0.545±5%±1%60mV+12V260±5%±1% 120mV -5V00.8±5%±1%120mV-12V00.8±5%±1%120mV+3.3V0.530±5%±2%60mV+5VSB03.5±5%±1%60mV


features ‧TEMPERATURE RANGE: OPERATING 0℃ ~ 50℃
‧HOLD UP TIME: 17mS MINIMUM AT FULL LOAD & NOMINAL INPUT VOLTAGE
‧DIELECTRIC WITHSTANDING: INPUT/OUTPUT 1500 VAC FOR 1 MINUTE
INPUT TO FRAM GROUND 1500 VAC FOR 1 MINUTE
‧EFFICIENCY: 71% TYPICAL AT FULL LOAD
‧POWER GOOD SIGNAL: ON DELAY 100 ms TO 500 ms, OFF DELAY 1 ms
‧OVER LOAD PROTECTION: 130 ±20%
‧OVER VOLTAGE PROTECTION:
+5V → 5.7V ~ 6.2V, +3.3V → 3.7V ~ 4.1V, +12V → 13.3V ~ 14.3V
‧OVER CIRCUIT PROTECTION:110% ~ 150%
‧EMI NOISE FILTER: FCC CLASS B, CISPR22 CLASS B
‧SAFETY: MEET UL&CUL, TUV, CCC
‧REMOTE ON / OFF CONTROL
THE POWER SUPPLY SHALL ACCEPT A LOGIC OPEN COLLECTOR LEVEL WHICH
WILL DISABLE/ENABLE ALL THE OUTPUT VOLTAGE (EXCLUDE +5V STAND BY)
AS LOGIC LEVEL IS LOW, OUTPUTS VOLTAGE WERE ENABLE
AS LOGIC LEVEL IS HIGH, OUTPUTS VOLTAGE WERE DISABLE
‧COOLING: 80mm DC FANS


*THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS.
pdf TUV:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/TUV/SSL,PSL-6800P%20TUV.pdf CCC:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CCC/SSL,PSL%20SERIES%20CCC.pdf MTBF:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MTBF/PSL-6800P.pdf DRAWING:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/DRAWING/PSL0MA03.pdf BSMI:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/ FCC:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/FCC/PSL-6800P%20FCC.pdf Manual-Chinese:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MANUAL/HG2-HP2-PSM-PSL%20SERIES%20MANUAL(Chinese).pdf MANUAL:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MANUAL/HG2-HP2-PSM-PSL%20SERIES%20MAUNAL(English).pdf CE:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CE/PSL-6800P%20(+Radiation).pdf
