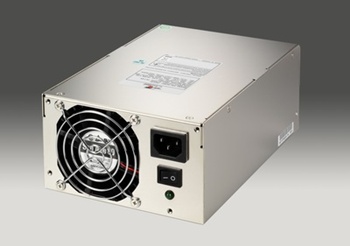

PSL-6850P(850W)
| 製品種別 | 電源 (Zippy) |
|---|---|
| 電源の種類 | PS2+ |
| 製品説明 |
製品仕様
| wattage | 850W |
|---|---|
| solution | Server ,Workstation ,Storage System ,IPC |
| dimension_mm | 220x150x86 |
| dimension_inch | 8.66x5.9x3.39 |
| input_spec | VOLTAGE: 100 ~ 264 VAC FULL RANGE. FREQUENCY: 47 ~ 63 Hz. INPUT CURRENT: 6A (RMS) FOR 230 VAC 13.5A (RMS) FOR 115 VAC INRUSH CURRENT: 75A MAX. FOR 115 VAC 150A MAX. FOR 230 VAC |
| dc_output |
|
| features | ‧TEMPERATURE RANGE: OPERATING 0℃ ~ 50℃ ‧HOLD UP TIME: 17mS MINIMUM AT FULL LOAD & NOMINAL INPUT VOLTAGE ‧DIELECTRIC WITHSTANDING: INPUT/OUTPUT 1500 VAC FOR 1 MINUTE INPUT TO FRAM GROUND 1500 VAC FOR 1 MINUTE ‧EFFICIENCY: 71% TYPICAL AT FULL LOAD ‧POWER GOOD SIGNAL: ON DELAY 100 ms TO 500 ms, OFF DELAY 1 ms ‧OVER LOAD PROTECTION: 130 ±20% ‧OVER VOLTAGE PROTECTION: +5V: 5.7V ~ 6.2V, +3.3V: 3.7V ~ 4.1V, +12V: 13.3V ~ 14.3V ‧OVER CIRCUIT PROTECTION: 110% ~ 150% ‧EMI NOISE FILTER: FCC CLASS B, CISPR22 CLASS B ‧SAFETY: MEET UL&CUL, TUV, CCC ‧REMOTE ON / OFF CONTROL ‧THE POWER SUPPLY SHALL ACCEPT A LOGIC OPEN COLLECTOR LEVEL WHICH WILL DISABLE/ENABLE ALL THE OUTPUT VOLTAGE (EXCLUDE +5V STAND BY) AS LOGIC LEVEL IS LOW, OUTPUTS VOLTAGE WERE ENABLE AS LOGIC LEVEL IS HIGH, OUTPUTS VOLTAGE WERE DISABLE ‧COOLING: 80mm DC FANS *THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS. |
| TUV:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/TUV/SSL,PSL-6800P%20TUV.pdf CB:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CB/SSL,PSL%20SERIES%20CB.pdf CCC:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CCC/SSL,PSL%20SERIES%20CCC.pdf FCC:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/FCC/PSL-6850P%20FCC.pdf MTBF:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MTBF/PSL-6850P.pdf DRAWING:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/DRAWING/PSL0MA03.pdf BSMI:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/ MANUAL:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MANUAL/HG2-HP2-PSM-PSL%20SERIES%20MAUNAL(English).pdf CE:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CE/PSL-6850P%20(+Radiation).pdf |
