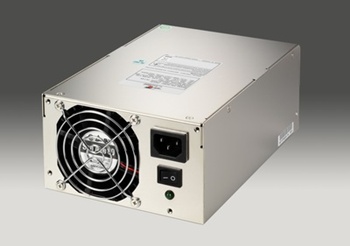

PSL-6C00V(1200W)

製品種別 電源 (Zippy)
電源の種類 PS2+
製品説明

製品仕様

wattage 1200W
solution Server ,Workstation ,Storage System
dimension_mm 220x150x86
dimension_inch 8.66x5.91x3.39
input_spec VOLTAGE: 90 ~ 264 VAC FULL RANGE FREQUENCY: 47 ~ 63 Hz. STEADY-STATE CURRENT: 15/7.5A AT ANY LOW/ HIGH RANGE INPUT VOLTAGE INRUSH CURRENT: 20A MAX. FOR 110 VAC , 40A MAX. FOR 220 VAC (AT 25 DEGREE C AMBIENT COLD START) PFC: UP TO THE TARGET OF 95% @230V, FULL LOAD
dc_output Output VoltageOutput Current Min.Output Current Max.Regulation LoadRegulation LineOutput Ripple & Noise Max.[P-P]+5V125±250mV±1%60mV+12V1150±600mV±1% 120mV +12V2150±600mV±1%120mV-12V00.8±600mV±1%120mV+3.3V125±165mV±1%60mV+5VSB0.13.5±250mV±1%60mV
+3.3V and +5V MAX. POWER: 170W
+3.3V AND +5V AND +12V2 MAX. POWER:600W
TOTAL POWER: 1200W(MAX)

features ‧TEMPERATURE RANGE: OPERATING 0℃~40℃; STORAGE TEMPERATURE: -20℃~80℃
‧HOLD UP TIME: 18mS MINIMUM AT 90V FULL LOAD & NOMINAL INPUT VOLTAGE
‧EFFICIENCY: 83%-88% TYPICAL AT 115V, FULL LOAD
‧LEAKAGE CURRENT: 3.5 mA. MAX. AT NOMINAL VOLTAGE 264VAC
‧POWER GOOD SIGNAL: ON DELAY 100 ms TO 500 ms, OFF DELAY 1 ms
‧OVER POWER PROTECTION: 110%~160%
‧OVER VOLTAGE PROTECTION: +3.3V→3.6~4.3V, +5V→5.5~6.5V, +12V1→13.2~15.6V, +12V2→13.2~15.6V
‧OVER CURRENT PROTECTION: +3.3V→27.5~37.5A, +5V→ 27.5~37.5A, +12V1→55~75A, +12V2→55~75A
‧SHORT CIRCUIT PROTECTION: +3.3V, +5V, +12V1, +12V2, -12V
‧SAFETY: TO MEET TUV, CB, RFI/EMI STANDARDS
‧EMI NOISE FILTER: FCC CLASS B, CISPR22 CLASS B
‧COOLING: 80mm DC FANS
‧I2C FEATURES (OPTIONAL)


*THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS.
pdf DRAWING:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/DRAWING/PSLVMA00.pdf MANUAL:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MANUAL/HG2-HP2-PSM-PSL%20SERIES%20MAUNAL(English).pdf Manual-Chinese:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MANUAL/HG2-HP2-PSM-PSL%20SERIES%20MANUAL(Chinese).pdf FCC:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/FCC/PSL-6C00V%20FCC.pdf DRAWING:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/DRAWING/PSLVMA02.pdf MTBF(ROHS):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MTBF/PSL-6C00V(RoHS).pdf TUV:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/TUV/PSL-V%20TUV.pdf CB:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CB/PSL-V%20CB.pdf CE(Radiation):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CE/PSL-6C00V%20(Radiation).pdf CCC:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CCC/PSL-6A00V%20&%20PSL-6C00V%20CCC.pdf
