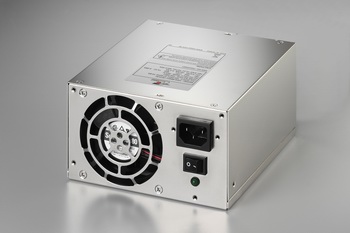

PSM-5860V(860W)
| 製品種別 | 電源 (Zippy) |
|---|---|
| 電源の種類 | PS2+ |
| 製品説明 |
製品仕様
| wattage | 860W |
|---|---|
| solution | Server ,Workstation ,Storage System |
| dimension_mm | 160x150x86 |
| dimension_inch | 6.3x5.91x3.39 |
| input_spec | VOLTAGE: 90 ~ 264 VAC FULL RANGE FREQUENCY : 47 ~ 63 HZ INPUT CURRENT: 12 A ( RMS ) FOR 115VAC / 6A ( RMS ) FOR 230VAC INRUSH CURRENT: 20A MAX. FOR 115 VAC / 40A MAX. FOR 230 VAC PFC CAN REACH THE TARGET OF 95% @230V, FULL LOAD |
| dc_output |
|
| features | * TEMPERATURE RANGE: OPERATING 0℃ ~ 50℃ * HOLD UP TIME: WHEN POWER SHUTDOWN DC OUTPUT 5V MUST BE MAINTAIN 16MSEC IN REGULATION LIMIT AT NORMAL INPUT VOLTAGE * HUMIDITY: OPERATING:20%-80%, NON-OPERATING:10%-90% * EFFICIENCY: TYPICAL 80-85% AT 25℃ 115V FULL LOAD * OVER POWER PROTECTOIN: 110%~150% * OVER VOLTAGE PROTECTION: +3.3V→3.6~4.3V, +5V→5.8~6.7V, +12V→13.2~15V * OVER CURRENT PROTECTION: +3.3V→29.7~40.2A, +5V→29.7~40.2A, +12V→63.7~86.2A * SHORT CIRCUIT PROTECTION: +5V, +3.3V, +12V, -12V * RESTART AFTER PROTECTION: IF THE PSU IS USING AC POWER SWITCH TO CONTROL ON/OFF, IT HAS TO BE SWITCHED OFF AT LEAST FOR 5 SECONDS TO RESTART THE UNIT * SAFETY: TO MEET UL, CUL, TUV, CCC * COOLING: ONE 60 mm DC FAN *THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS. |
| CB:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CB/HU2%20&%20PSM-V%20CB.pdf TUV:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/TUV/HU2%20&%20PSM-V%20TUV.pdf Manual-English:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MANUAL/HG2-HP2-PSM-PSL%20SERIES%20MAUNAL(English).pdf Manual-Chinese:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MANUAL/HG2-HP2-PSM-PSL%20SERIES%20MANUAL(Chinese).pdf DRAWING:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/DRAWING/PSMVMA00.pdf CCC:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CCC/PSM-5760V%20&%20PSM-5860V%20CCC.pdf MTBF(ROHS):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MTBF/PSM-5860V(RoHS).pdf MTBF(ROHS)(NO FAN):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MTBF/PSM-5860V(RoHS)(NO%20FAN).pdf FCC:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/FCC/PSM-5860V%20FCC.pdf MTBF(RoHS)(50℃):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MTBF/PSM-5860V(RoHS)(50%e2%84%83).pdf MTBF(RoHS)(50℃)(NO FAN):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MTBF/PSM-5860V(RoHS)(50%e2%84%83)(NO%20FAN).pdf CE(Radiation):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CE/PSM-5860V%20(Radiation).pdf |
