製品情報

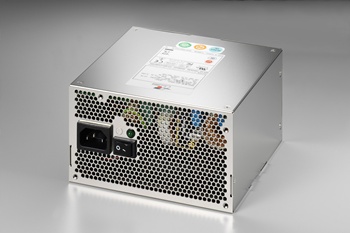

GU2-5950V(950W)

製品種別 電源 (Zippy)
電源の種類 PS2+
製品説明

製品仕様

wattage 950W
solution Server ,Workstation ,Storage System
dimension_mm 160x150x86
dimension_inch 6.3x5.91x3.39
input_spec VOLTAGE:90~264VAC FULL RANGE FREQUENCY: 47~63HZ INPUT CURRENT:13 (RMS) FOR 120 VAC / 7A (RMS) FOR 230 VAC INRUSH CURRENT:40A MAX. FOR 120 VAC / 80A MAX. FOR 230 VAC PFC CAN REACH THE TARGET OF 95% @230VAC, FULL LOAD
dc_output Output VoltageOutput Current Min.Output Current Max.Regulation LoadRegulation LineOutput Ripple & Noise Max.[P-P]+5V0.534±5%±1%50mV+12V175±5%±1% 50mV -12V00.8±5%±1%120mV+3.3V0.534±5%±1%50mV+5VSB0.13.5±5%±1%50mV
TOTAL POWER: 950W(MAX) +5V AND +3.3V TOTAL MAX.: 55A

features * TEMPERATURE RANGE:OPERATING 0℃~40℃
* HOLD UP TIME:WHEN POWER SHUTDOWN DC OUTPUT 5V MUST BE MAINTAIN 12mS IN REGULATION LIMIT AT NORMAL INPUT VOLTAGE
* EFFICIENCY:TYPICAL 80-85% AT 25℃ 115V FULL LOAD
* POWER GOOD SIGNAL:ON DELAY 100mS TO 500mS,OFF DELAY 1mS
* OVER POWER PROTECTION:TRIP POINT TOTAL POWER MIN. 110%, MAX. 150%
* OVER VOLTAGE PROTECTION:+5V→5.8V~6.7V, 3.3V→3.6V~4.3V, +12V→13.2V~15V
* OVER CURRENT PROTECTOIN: +3.3V→37.4~51A, +5V→37.4~51A, +12V→82.5~112A
* SHORT CIRCUIT :+5V
-5V
+12V
-12V
+3.3V
* RESTART AFTER PROTECTION
* LEAKAGE CURRENT: 1.5MA MAX. AT NOMINAL VOLTAGE VAC
* EMI NOISE FILTER : FCC CLASS B , CISPR22 CLASS B
* SAFETY : TO MEET UL, CUL, TUV, CCC
* REMOTE ON/OFF CONTROL


*THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS.
pdf DRAWING:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/DRAWING/GU20MA00.pdf MTBF(RoHS):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MTBF/GU2-5950V(RoHS).pdf CE (Radiation):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CE/GU2-5950V%20(Radiation).pdf FCC:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/FCC/GU2-5950V%20FCC.pdf
