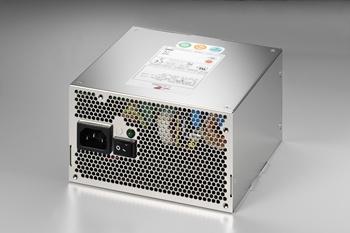

GU2-5C00V(1200W)
| 製品種別 | 電源 (Zippy) |
|---|---|
| 電源の種類 | PS2+ |
| 製品説明 |
製品仕様
| wattage | 1200W |
|---|---|
| solution | Server ,Workstation ,Storage System |
| dimension_mm | 160x150x86 |
| dimension_inch | 6.3x5.91x3.39 |
| input_spec | VOLTAGE：90～264VAC FULL RANGE FREQUENCY： 47～63HZ INPUT CURRENT：15 (RMS) FOR 120 VAC / 8A (RMS) FOR 230 VAC INRUSH CURRENT：40A MAX. FOR 120 VAC / 80A MAX. FOR 230 VAC PFC CAN REACH THE TARGET OF 95% @230VAC, FULL LOAD |
| dc_output |
|
| features | * TEMPERATURE RANGE：OPERATING 0℃～40℃ * HOLD UP TIME：WHEN POWER SHUTDOWN DC OUTPUT 5V MUST BE MAINTAIN 12mS IN REGULATION LIMIT AT NORMAL INPUT VOLTAGE * EFFICIENCY：TYPICAL 80-85% AT 25℃ 115V FULL LOAD * POWER GOOD SIGNAL：ON DELAY 100mS TO 500mS，OFF DELAY 1mS * OVER POWER PROTECTION：TRIP POINT TOTAL POWER MIN. 110%, MAX. 150% * OVER VOLTAGE PROTECTION：+5V→5.8V～6.7V, 3.3V→3.6V～4.3V, +12V→13.2V～15V * OVER CURRENT PROTECTOIN: +3.3V→37.4~51A, +5V→37.4~51A, +12V→110~150A * SHORT CIRCUIT ：+5V -5V +12V -12V +3.3V * RESTART AFTER PROTECTION * LEAKAGE CURRENT: 1.5MA MAX. AT NOMINAL VOLTAGE VAC * EMI NOISE FILTER : FCC CLASS B , CISPR22 CLASS B * SAFETY : TO MEET UL, CUL, TUV, CCC * REMOTE ON/OFF CONTROL *THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS. |
| DRAWING:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/DRAWING/GU20MA00.pdf CE (Radiation):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CE/GU2-5C00V%20(Radiation).pdf MTBF(RoHS):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MTBF/GU2-5C00V(RoHS).pdf FCC:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/FCC/GU2-5C00V%20FCC.pdf |
