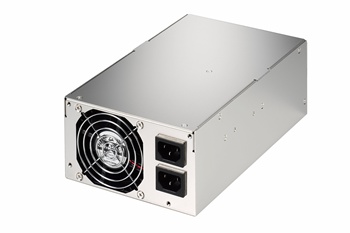

PSL-6AH0V(1800W)

製品種別 電源 (Zippy)
電源の種類 PS2+
製品説明

製品仕様

wattage 1800W
solution Server ,Workstation ,Storage System
dimension_mm 250x150x86
dimension_inch 9.84x5.91x3.39
input_spec VOLTAGE: 90 ~ 264 VAC FULL RANGE FREQUENCY: 47 ~ 63 Hz. STEADY-STATE CURRENT: 26/13A AT ANY LOW/ HIGH RANGE INPUT VOLTAGE INRUSH CURRENT: 60A MAX. FOR 110 VAC , 80A MAX. FOR 220 VAC (AT 25 DEGREE C AMBIENT COLD START) PFC: UP TO THE TARGET OF 95% @230V, FULL LOAD
dc_output Output VoltageOutput Current Min.Output Current Max.Regulation LoadRegulation LineOutput Ripple & Noise Max.[P-P]+5V125±250mV±1%60mV+12V1175±600mV±1% 120mV +12V2175±600mV±1%120mV-12V00.8±600mV±1%120mV+3.3V125±165mV±1%60mV+5VSB0.13.5±250mV±1%60mV
+3.3V and +5V MAX. POWER: 170W
+3.3V AND +5V AND +12V2 MAX. POWER:900W
TOTAL POWER: 1800W(MAX)

features ‧TEMPERATURE RANGE: OPERATING 0℃ ~ 40℃; STORAGE TEMPERATURE: -20℃ ~ 80℃
‧HOLD UP TIME: 18mS MINIMUM AT 90V FULL LOAD & NOMINAL INPUT VOLTAGE
‧EFFICIENCY: 82% TYPICAL AT 115V, FULL LOAD
‧LEAKAGE CURRENT: 3.5 mA. MAX. AT NOMINAL VOLTAGE 264VAC
‧POWER GOOD SIGNAL: ON DELAY 100 ms TO 500 ms, OFF DELAY 1 ms
‧OVER POWER PROTECTION: 110%~150%
‧OVER VOLTAGE PROTECTION: +3.3V→3.6~4.3V, +5V→5.5~6.5V, +12V1→13.2~15.6V, +12V2→13.2~15.6V
‧OVER CURRENT PROTECTION
‧SHORT CIRCUIT PROTECTION: +3.3V, +5V, +12V1, +12V2, -12V
‧SAFETY: TO MEET UL, CUL, TUV, RFI/EMI STANDARDS
‧EMI NOISE FILTER: FCC CLASS B, CISPR22 CLASS B
‧COOLING: 80mm DC FANS
‧I2C FEATURES (OPTIONAL)


*THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS.
pdf DRAWING:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/DRAWING/PSLVMA03.pdf CE(Radiation):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CE/PSL-6AH0V%20(Radiation).pdf FCC:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/FCC/PSL-6AH0V%20FCC.pdf
