製品情報

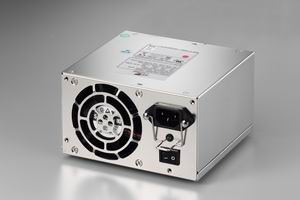

HG2-5500V(500W)

製品種別 電源 (Zippy)
電源の種類 PS2
製品説明

製品仕様

wattage 500W
solution Server ,Workstation ,PCs
dimension_mm 140x150x86
dimension_inch 5.51x5.91x3.39
input_spec VOLTAGE: 100~240 VAC FULL RANGE FREQUENCY: 47~63HZ INPUT CURRENT: 8A/4A FOR 115/230VAC INRUSH CURRENT: 20/40 AMPS @ 115/230VAC
dc_output Output VoltageOutput Current Min.Output Current Max.Regulation LoadRegulation LineOutput Ripple & Noise Max.[P-P]+5V0.520±5%±50mV50mV+12V138±5%±50mV 120mV -12V00.8±5%±50mV120mV+3.3V0.520±5%±50mV50mV+5VSB0.13.5±5%±50mV50mV
Update +12V Min load 2A to 1A

features *TEMPERATURE RANGE: OPERATING 0℃ ~ 50℃, STORAGE -20℃ ~ 80℃
*HOLD UP TIME: 16ms MINIMUM AT FULL LOAD & NORMAL INPUT VOLTAGE
*EFFICIENCY: 80-85% TYPICAL AT 115V FULL LOAD
*POWER GOOD SIGNAL: ON DELAY 100ms TO 500ms
*OVER POWER PROTECTOIN
*OVER VOLTAGE PROTECTOIN
*SHORT CIRCUIT PROTECTION
*OVER CURRENT PROTECTION
*SAFETY: TO MEET UL, CUL, TUV, CCC


*THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS.
pdf DRAWING:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/DRAWING/HG2VMA00.pdf MTBF(ROHS):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MTBF/HG2-5500V(RoHS).pdf TUV:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/TUV/HG2-V%20&%20GP2-V%20TUV.pdf CB:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CB/HG2-V%20&%20GP2-V%20CB.pdf BSMI:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/ 80+ report:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/REPORT/EMACS-HG2-5500V-500W-Report.pdf TUV:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/TUV/HG2-V%20&%20GP2-V%20TUV.pdf FCC:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/FCC/HG2-5500V%20FCC.pdf MANUAL:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MANUAL/HG2-HP2-PSM-PSL%20SERIES%20MAUNAL(English).pdf CE(Radiation):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CE/HG2-5500V%20(Radiation).pdf CCC:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CCC/HG2-V%20&%20GP2-V%20CCC.pdf MTBF(RoHS)(50℃):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MTBF/HG2-5500V(RoHS)(50%e2%84%83).pdf MTBF(RoHS):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MTBF/HG2-5500V(RoHS).pdf
