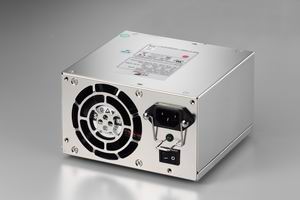

HG2-5400V(400W)
| 製品種別 | 電源 (Zippy) |
|---|---|
| 電源の種類 | PS2 |
| 製品説明 |
製品仕様
| wattage | 400W |
|---|---|
| solution | Server ,Workstation ,PCs |
| dimension_mm | 140x150x86 |
| dimension_inch | 5.51x5.91x3.39 |
| input_spec | VOLTAGE: 90~240 VAC FULL RANGE FREQUENCY: 47~63HZ INPUT CURRENT: 6A/3A FOR 115/230VAC INRUSH CURRENT: 20/40 MAX. FOR 115/230VAC |
| dc_output |
|
| features | *TEMPERATURE RANGE: OPERATING 0℃ ~ 50℃; STORAGE -20℃ ~ 80℃ *HOLD UP TIME: 16ms MINIMUM AT FULL LOAD & NORMAL INPUT VOLTAGE *EFFICIENCY: 80-85% TYPICAL AT 115V FULL LOAD *POWER GOOD SIGNAL: ON DELAY 100ms TO 500ms, OFF DELAY 1ms *OVER POWER PROTECTOIN *OVER VOLTAGE PROTECTOIN *SHORT CIRCUIT PROTECTION *OVER CURRENT PROTECTION *SAFETY: TO MEET UL, CUL, TUV, CCC *THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS. |
| MTBF(ROHS):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MTBF/HG2-5400V(RoHS).pdf TUV:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/TUV/HG2-V%20&%20GP2-V%20TUV.pdf CB:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CB/HG2-V%20&%20GP2-V%20CB.pdf BSMI:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/ 80+ report:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/REPORT/EMACS-HG2-5400V-400W-Report.pdf TUV:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/TUV/HG2-V%20&%20GP2-V%20TUV.pdf FCC:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/FCC/HG2-5400V%20FCC.pdf MANUAL:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MANUAL/HG2-HP2-PSM-PSL%20SERIES%20MAUNAL(English).pdf MTBF(ROHS)(50℃):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MTBF/HG2-5400V(RoHS)(50%e2%84%83).pdf MTBF(ROHS)(50℃)(NO FAN):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MTBF/HG2-5400V(RoHS)(50%e2%84%83)(NO%20FAN).pdf MTBF(RoHS)(NO FAN):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MTBF/HG2-5400V(RoHS)(NO%20FAN).pdf CE(Radiation):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CE/HG2-5400V%20(Radiation).pdf CCC:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CCC/HG2-V%20&%20GP2-V%20CCC.pdf |
