製品情報

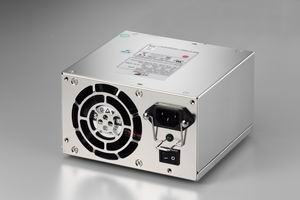

HG2-5400E(400W)

製品種別 電源 (Zippy)
電源の種類 PS2
製品説明

製品仕様

wattage 400W
solution Server ,Workstation ,PCs
dimension_mm 140x150x86
dimension_inch 5.51x5.91x3.39
input_spec VOLTAGE: 90 ~ 240 VAC FULL RANGE FREQUENCY: 47~63HZ INPUT CURRENT: 5.5/3A FOR 115/230VAC INRUSH CURRENT: 35/80 MAX. FOR 115/230VAC
dc_output Output VoltageOutput Current Min.Output Current Max.Regulation LoadRegulation LineOutput Ripple & Noise Max.[P-P]+5V021±5%±1%50mV+12V0.533±5%±1% 120mV -12V00.5±5%±1%120mV+3.3V015±5%±1%50mV+5VSB03±5%±1%50mV
* TOTAL OUTPUT CURRENT OF +5V AND +3.3V NOT EXCEED 110W
* TOTAL POWER: 400W(MAX)


features *TEMPERATURE RANGE: OPERATING 0℃ ~ 50℃, STORAGE -20℃ ~ 80℃
*HOLD UP TIME: 16ms MINIMUM AT FULL LOAD & NORMAL INPUT VOLTAGE
*EFFICIENCY: 87% TYPICAL AT 115V FULL LOAD
*POWER GOOD SIGNAL: ON DELAY 100ms TO 500ms, OFF DELAY 1ms
*OVER POWER PROTECTOIN
*OVER VOLTAGE PROTECTOIN
*SHORT CIRCUIT PROTECTION
*OVER CURRENT PROTECTION
*COOLING: ONE 80mm DC FAN
*LEAKAGE CURRENT: 3.5mA MAX. AT NOMINAL VOLTAGE VAC *ACTIVE POWER FACTOR CORRECTION MEET IEC-1000-3-2 CLASS D
*EMI NOISE FILTER: FCC CLASS B, CISPR22 CLASS B
*SAFETY: TO MEET UL, CUL, TUV, CCC
*ErP READY

*THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS.
pdf MTBF(RoHS):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MTBF/HG2-5400E(RoHS).pdf CB:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CB/HG2-E%20CB.pdf TUV:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/TUV/HG2-E%20TUV.pdf CCC:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CCC/HG2-E%20CCC.pdf
