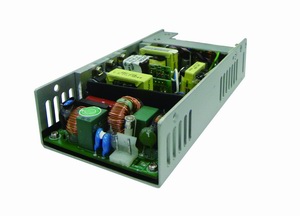

Q1D-5120V(120W)
| 製品種別 | 電源 (Zippy) |
|---|---|
| 電源の種類 | Open Frame |
| 製品説明 |
製品仕様
| wattage | 120W |
|---|---|
| solution | Server ,Workstation ,Storage System ,IPC |
| dimension_mm | 165x83.8x39 |
| dimension_inch | 6.5x3.3x1.54 |
| input_spec | VOLTAGE： 90～264VAC FULL RANGE FREQUENCY： 47～63HZ INPUT CURRENT：2A (RMS) FOR 115 VAC 1A (RMS) FOR 230 VAC INRUSH CURRENT：35A MAX. FOR 115 VAC 70A MAX. FOR 230 VAC |
| dc_output |
|
| features | ‧TEMPERATURE RANGE：OPERATING 0℃～50℃ ‧HOLD UP TIME：41mS MINIMUM AT 115V FULL LOAD ‧DIELECTRIC WITHSTAND：INPUT/OUTPUT 1800 VAC FOR 1 SECOND ‧INPUT TO FRAME GROUND 1800 VAC FOR 1 SECOND ‧EFFICIENCY：82%±2% TYPICAL，AT FULL LOAD 115Vac ‧POWER GOOD SIGNAL：ON DELAY 100mS TO 550mS，OFF DELAY 1mS ‧OVER POWER PROTECTION：110～160% MAX ‧OVER VOLTAGE PROTECTION ‧SHORT CIRCUIT PROTECTION ‧SAFETY : TO MEET UL, CSA, TUV ‧THE POWER SUPPLY SHALL ACCEPT A LOGIC OPEN COLLECTOR LEVEL WHICH WILL DISABLE/ENABLE ALL THE OUTPUT VOLTAGE (EXCLUDE +5V STAND BY). ‧AS LOGIC LEVEL IS LOW，OUTPUTS VOLTAGE WERE ENABLE ‧AS LOGIC LEVEL IS HIGH，OUTPUTS VOLTAGE WERE DISABLE *THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS. |
| DRAWING:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/DRAWING/Q1D0MA00.pdf CB:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CB/Q1D-5120V%20CB.pdf FCC:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/FCC/Q1D-5120V%20FCC.pdf TUV:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/TUV/Q1D-5120V%20TUV.pdf CCC:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CCC/Q1D-5120V%20CCC.pdf MTBF(ROHS):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MTBF/Q1D-5120V(RoHS).pdf MTBF(ROHS)(70℃):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MTBF/Q1D-5120V(RoHS)(70%e2%84%83).pdf MTBF(ROHS)(50℃):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MTBF/Q1D-5120V(RoHS)(50%e2%84%83).pdf CE(Radiation):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CE/Q1D-5120V%20(Radiation).pdf |
