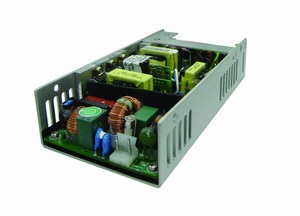

Q1F-1150V24(150W)
| 製品種別 | 電源 (Zippy) |
|---|---|
| 電源の種類 | Open Frame |
| 製品説明 |
製品仕様
| wattage | 150W |
|---|---|
| solution | Server ,Workstation ,Storage System ,IPC |
| dimension_mm | 127x76.2x40 |
| dimension_inch | 5x3x1.57 |
| input_spec | VOLTAGE： 90～264VAC FULL RANGE FREQUENCY： 47～63HZ INPUT CURRENT：2A (RMS) FOR 115 VAC 1A (RMS) FOR 230 VAC INRUSH CURRENT：35A MAX. FOR 115 VAC 70A MAX. FOR 230 VAC |
| dc_output |
|
| features | ‧TEMPERATURE RANGE：OPERATING 0℃～70℃, STORAGE -20℃~80℃ ‧HOLD UP TIME：32mS MINIMUM AT 115V FULL LOAD ‧EFFICIENCY：83%±2% TYPICAL，AT FULL LOAD 115Vac ‧OVER POWER PROTECTION：110～170% MAX ‧OVER VOLTAGE PROTECTION ‧SHORT CIRCUIT PROTECTION ‧SAFETY : TO MEET UL, TUV, CCC *THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS. |
| DRAWING:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/DRAWING/Q1F0MA00.pdf DRAWING:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/DRAWING/Q1F0MA02.pdf MTBF(RoHS):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MTBF/Q1F-1150V24(RoHS).pdf CE:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CE/Q1F-1150V24.pdf FCC:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/FCC/Q1F-1150V24%20FCC.pdf CB:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CB/Q1F%20CB.pdf |
