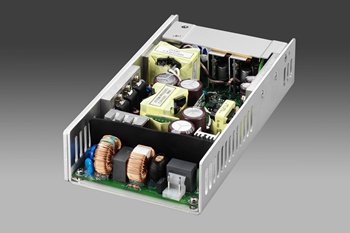

Q1K-5200V(200W)
| 製品種別 | 電源 (Zippy) |
|---|---|
| 電源の種類 | Open Frame |
| 製品説明 |
製品仕様
| wattage | 200W |
|---|---|
| solution | Server |
| dimension_mm | 186x100x39.5 |
| dimension_inch | 7.33x3.94x1.56 |
| input_spec | VOLTAGE: 90~264 VAC FULL RANGE FREQUENCY: 47~63HZ STEADY-STATE CURRENT: 3A/1.5A AT ANY LOW/HIGH RANGE INPUT VOLTAGE INRUSH CURRENT: 35/80 AMPS @115/230 VAC (AT25 DEGREES AMBIENT COLD START) POWER FACTOR CORRECTION: PFC CAN REACH THE TARGET OF 95% @115/230 VAC, FULL LOAD. |
| dc_output |
|
| features | * TEMPERATURE: OPERATING 0 TO 70 DEGREES CENTIGRADE(90～264 VAC);NON-OPERATING TEMPERATURE: -20 TO 80 DEGREES CENTIGRADE * EFFICIENCY: 85%(+/-2%) AT 230V; LOAD CONDITION: 12V/11.18A; 5V/6.47A; 3.3V/5.53A; -12V/0.36A; 5VSB/2.17A * HOLD UP TIME: WHEN AC SOURCE SHUTDOWN DC OUTPUT MUST BE MAINTAIN 100MSEC IN REGULATION LIMIT AT NORMAL INPUT VOLTAGE (AC115V@80% OF FULL LOAD). * OVER POWER PROTECTION: 110~160% * OVER VOLTAGE PROTECTION: +3.3V→3.6V~4.3V, +5V→5.6V~6.5V, +12V→13.2~15V * SHORT CIRCUIT: +5V, +3.3V, +12V, -12V, +5VSB * SAFETY: TO MEET UL, CUL, TUV, CCC * LEAKAGE CURRENT: 3.5 mA MAX. AT NOMINAL VOLTAGE 264VAC * REMOTE ON/OFF CONTROL *THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS. |
| MTBF(RoHS)(50℃):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MTBF/Q1K-5200V(RoHS)(50%e2%84%83).pdf MTBF(RoHS):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MTBF/Q1K-5200V(RoHS).pdf CB:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CB/Q1K-V%20CB.pdf FCC:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/FCC/Q1K-5200V%20FCC.pdf TUV:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/TUV/Q1K-V%20TUV.pdf CCC:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CCC/Q1K-V%20CCC.pdf CE(Radiation):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CE/Q1K-5200V%20(+Radiation).pdf CE(Radiation):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CE/Q1K-5200V%20(Radiation).pdf |
