製品情報

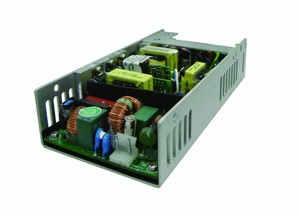

Q1F-1150V12(150W)

製品種別 電源 (Zippy)
電源の種類 Open Frame
製品説明

製品仕様

wattage 150W
solution Server ,Workstation ,Storage System ,IPC
dimension_mm 127x76.2x40
dimension_inch 5x3x1.57
input_spec VOLTAGE: 90~264VAC FULL RANGE FREQUENCY: 47~63HZ INPUT CURRENT:2A (RMS) FOR 115 VAC 1A (RMS) FOR 230 VAC INRUSH CURRENT:35A MAX. FOR 115 VAC 70A MAX. FOR 230 VAC
dc_output Output VoltageOutput Current Min.Output Current Max.Regulation LoadRegulation LineOutput Ripple & Noise Max.[P-P]+12V012.5±1%120mV


features ‧TEMPERATURE RANGE:OPERATING 0℃~70℃, STORAGE -20℃~80℃
‧HOLD UP TIME:32mS MINIMUM AT 115V FULL LOAD
‧EFFICIENCY:82%±2% TYPICAL, AT FULL LOAD 115VAC/230VAC AND LOAD CONDITION 12V/12.5A
‧OVER POWER PROTECTION:110~170% MAX
‧OVER VOLTAGE PROTECTION: +12V→13.2V~15V
‧SHORT CIRCUIT PROTECTION: +12V
‧SAFETY : TO MEET UL, TUV, CCC


*THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS.
pdf MTBF(RoHS):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MTBF/Q1F-1150V12(RoHS).pdf DRAWING:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/DRAWING/Q1F0MA02.pdf CB:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CB/Q1F%20CB.pdf TUV:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/TUV/Q1F%20TUV.pdf CCC:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CCC/Q1F%20CCC.pdf CE (Radiation):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CE/Q1F-1150V12%20(Radiation).pdf FCC:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/FCC/Q1F-1150V12%20FCC.pdf
