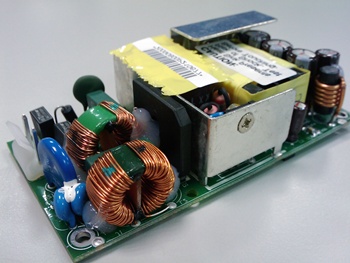

MQ1G-1050V-5(50W)
| 製品種別 | 電源 (Zippy) |
|---|---|
| 電源の種類 | Open Frame |
| 製品説明 |
製品仕様
| wattage | 50W |
|---|---|
| solution | Server ,Workstation ,Storage System ,Communication ,Networking |
| dimension_mm | 101.6x50.8x30 |
| dimension_inch | 4x2x1.18 |
| input_spec | VOLTAGE： 90～264VAC FULL RANGE FREQUENCY： 47～63HZ STEADY-STATE CURRENT：1.5A/1A at any low/high range input voltage INRUSH CURRENT：35A MAX. FOR 115 VAC / 70A MAX. FOR 230 VAC |
| dc_output |
|
| features | * TEMPERATURE RANGE：OPERATING 0℃～70℃, STORAGE –20℃~80℃ * HOLD UP TIME: WHEN AC SOURCE SHUTDOWN DC OUTPUT MUST BE MAINTAIN 16MSEC IN REGULATION LIMIT AT NORMAL INPUT VOLTAGE * EFFICIENCY：81% (+/-2%) AT 230VAC AND LOAD CONDITION: 40V/0.9A * OVER POWER PROTECTION: 110～160% MAX * OVER VOLTAGE PROTECTION: +5V→5.75V~6.25V * SHORT CIRCUIT PROTECTION: +5V * SAFETY: TO MEET UL, CUL, TUV, CCC * LEAKAGE CURRENT: 0.3MA MAX. AT NOMINAL VOLTAGE 264VAC *THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS. |
| CCC:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CCC/MQ1G-V%20CCC.pdf DRAWING:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/DRAWING/MQ1GMA00.pdf CE:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CE/MQ1G-1050V-5.pdf FCC:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/FCC/MQ1G-1050V-5%20FCC.pdf |
