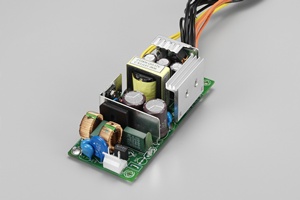

Q1I-2050V53(50W)
| 製品種別 | 電源 (Zippy) |
|---|---|
| 電源の種類 | Open Frame |
| 製品説明 |
製品仕様
| wattage | 50W |
|---|---|
| solution | Server ,Workstation ,Storage System |
| dimension_mm | 114.5x50.8x38 |
| dimension_inch | 4.51x2x1.5 |
| input_spec | VOLTAGE： 90～264VAC FULL RANGE FREQUENCY： 47～63HZ INPUT CURRENT：1.5A (RMS) FOR 115 VAC / 1A (RMS) FOR 230 VAC INRUSH CURRENT：35A MAX. FOR 115 VAC / 70A MAX. FOR 230 VAC |
| dc_output |
|
| features | * TEMPERATURE RANGE：OPERATING 0℃～70℃, STORAGE –20℃~80℃ * HOLD UP TIME: WHEN AC SOURCE SHUTDOWN DC OUTPUT MUST BE MAINTAIN 16msec IN REGULATION LIMIT AT NORMAL INPUT VOLTAGE * EFFICIENCY：79% (+/-2%) AT 115VAC/230VAC AND LOAD CONDITION: 5V/6.04A, 3.3V/6A * POWER GOOD SIGNAL：ON DELAY 100mS TO 550mS，OFF DELAY 1mS * OVER POWER PROTECTION: 110～170% * OVER VOLTAGE PROTECTION: +5V→5.75V~6.25V; +3.3V→3.7~4.2V * SHORT CIRCUIT PROTECTION: +5V, +3.3V * LEAKAGE CURRENT: 3.5MA MAX. AT NOMINAL VOLTAGE 264VAC * SAFETY: TO MEET UL&CUL, TUV, CCC *THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS. |
| CB:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CB/Q1I-V%20CB.pdf TUV:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/TUV/Q1I-V%20TUV.pdf CCC:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CCC/Q1I-V%20CCC.pdf |
