製品情報

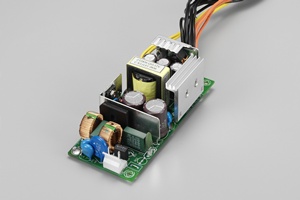

Q1I-2060V123(60W)

製品種別 電源 (Zippy)
電源の種類 Open Frame
製品説明

製品仕様

wattage 60W
solution Server ,Workstation ,Storage System
dimension_mm 114.5x50.8x38
dimension_inch 4.51x2x1.5
input_spec VOLTAGE: 90~264VAC FULL RANGE FREQUENCY: 47~63HZ INPUT CURRENT:1.5A (RMS) FOR 115 VAC / 1A (RMS) FOR 230 VAC INRUSH CURRENT:35A MAX. FOR 115 VAC / 70A MAX. FOR 230 VAC
dc_output Output VoltageOutput Current Min.Output Current Max.Regulation LoadRegulation LineOutput Ripple & Noise Max.[P-P]+12V0.15±5%±1%120mV+3.3V06±5%±1% 50mV


features * TEMPERATURE RANGE:OPERATING 0℃~70℃, STORAGE –20℃~80℃
* HOLD UP TIME: WHEN AC SOURCE SHUTDOWN DC OUTPUT MUST BE MAINTAIN 16msec IN REGULATION LIMIT AT NORMAL INPUT VOLTAGE
* EFFICIENCY:81% (+/-2%) AT 115VAC/230VAC AND LOAD CONDITION: 12V/3.35A, 3.3V/6A
* POWER GOOD SIGNAL:ON DELAY 100mS TO 550mS,OFF DELAY 1mS
* OVER POWER PROTECTION: 110~160%
* OVER VOLTAGE PROTECTION: +12V→13.8V~15V; +3.3V→3.7~4.2V
* SHORT CIRCUIT PROTECTION: +12V, +3.3V
* LEAKAGE CURRENT: 3.5MA MAX. AT NOMINAL VOLTAGE 264VAC
* SAFETY: TO MEET UL&CUL, TUV, CCC


*THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS.
pdf DRAWING:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/DRAWING/Q1I0MA00.pdf CB:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CB/Q1I-V%20CB.pdf TUV:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/TUV/Q1I-V%20TUV.pdf CCC:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CCC/Q1I-V%20CCC.pdf CE:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CE/Q1I-2060V123.pdf MTBF(RoHS):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MTBF/Q1I-2060V123(RoHS).pdf CE(Radiation):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CE/Q1I-2060V123%20(Radiation).pdf FCC:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/FCC/Q1I-2060V123%20FCC.pdf
