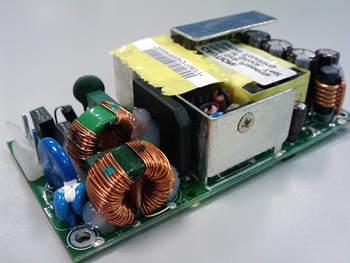

MQ1G-1035V-40(35W)
| 製品種別 | 電源 (Zippy) |
|---|---|
| 電源の種類 | Open Frame |
| 製品説明 |
製品仕様
| wattage | 35W |
|---|---|
| solution | Server ,Workstation ,Storage System ,Communication ,Networking |
| dimension_mm | 101.6x50.8x30 |
| dimension_inch | 4x2x1.18 |
| input_spec | VOLTAGE： 90～264VAC FULL RANGE FREQUENCY： 47～63HZ INPUT CURRENT：1.5A (RMS) FOR 115 VAC / 1A (RMS) FOR 230 VAC INRUSH CURRENT：35A MAX. FOR 115 VAC / 70A MAX. FOR 230 VAC |
| dc_output |
|
| features | * TEMPERATURE RANGE：OPERATING 0℃～70℃, STORAGE –20℃~80℃ * HOLD UP TIME: WHEN AC SOURCE SHUTDOWN DC OUTPUT MUST BE MAINTAIN 16msec IN REGULATION LIMIT AT NORMAL INPUT VOLTAGE * EFFICIENCY：83% (+/-2%) AT 115VAC/230VAC AND LOAD CONDITION: 40V/0.9A * POWER GOOD SIGNAL：ON DELAY 100mS TO 550mS，OFF DELAY 1mS * OVER POWER PROTECTION: 140～170% AT 115VAC AND 160%~190% AT 230VAC * OVER VOLTAGE PROTECTION: +40V→44V~52V * SHORT CIRCUIT PROTECTION: +40V * SAFETY: TO MEET UL, CUL, TUV, CCC * LEAKAGE CURRENT: 0.3MA MAX. AT NOMINAL VOLTAGE 264VAC *THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS. |
