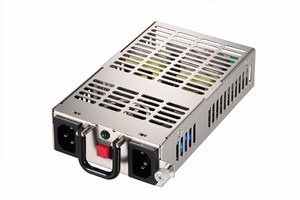

RH1E-1067V(60W)
| 製品種別 | 電源 (Zippy) |
|---|---|
| 電源の種類 | Open Frame |
| 製品説明 |
製品仕様
| wattage | 60W |
|---|---|
| solution | Server ,Workstation ,Storage System |
| dimension_mm | 200x100x40 |
| dimension_inch | 7.87x3.94x1.57 |
| input_spec | VOLTAGE： 90～264VAC FULL RANGE FREQUENCY： 47～63HZ INPUT CURRENT：1.5A (RMS) FOR 115 VAC / 1A (RMS) FOR 230 VAC INRUSH CURRENT：35A MAX. FOR 115 VAC / 70A MAX. FOR 230 VAC |
| dc_output |
|
| features | * TEMPERATURE RANGE：OPERATING 0℃～70℃, STORAGE –10℃~85℃ * HOLD UP TIME: WHEN AC SOURCE SHUTDOWN DC OUTPUT MUST BE MAINTAIN 20MSEC IN REGULATION LIMIT AT NORMAL INPUT VOLTAGE(AC115V AT 80% OF FULL LOAD) * EFFICIENCY：78% (+/-2%) AT 115VAC/230VAC AND LOAD CONDITION: 12V/5A * POWER GOOD SIGNAL：ON DELAY 100mS TO 500mS，OFF DELAY 1mS * OVER POWER PROTECTION: 120～170% * OVER VOLTAGE PROTECTION: +12V→13.2V~15.0V * SHORT CIRCUIT PROTECTION: +12V * LEAKAGE CURRENT: 3.5MA MAX. AT NOMINAL VOLTAGE 264VAC * SAFETY: TO MEET UL&CUL, TUV, CCC * BACK PLANE PHYSICAL DIMENSION MAX. 32(D)*60(W)*40(H)mm *THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS. |
| CE(Radiation):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CE/RH1E-1067V%20(Radiation)%20.pdf FCC:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/FCC/RH1E-1067V%20FCC.pdf CE(Radiation):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CE/RH1E-1067V%20(Radiation).pdf |
