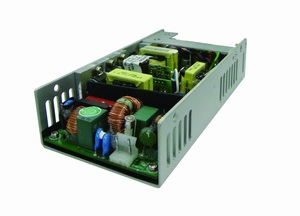

Q1N-3400V(400W)
| 製品種別 | 電源 (Zippy) |
|---|---|
| 電源の種類 | Open Frame |
| 製品説明 |
製品仕様
| wattage | 400W |
|---|---|
| solution | Server ,Workstation ,Storage System ,IPC |
| dimension_mm | 199x92x43 |
| dimension_inch | 7.83x3.62x1.69 |
| input_spec | VOLTAGE： 90～264VAC FULL RANGEFREQUENCY： 47～63HZINPUT CURRENT：6A (RMS) FOR 115 VAC3A (RMS) FOR 230 VACINRUSH CURRENT：30 AMPS @ 230 VAC (AT 25 DEGREES AMBIENT COLD START FOR EACH POWER UNIT) |
| dc_output |
* TOTAL POWER: 400W(MAX) |
| features | ‧TEMPERATURE RANGE：OPERATING 0℃～40℃, STORAGE -20℃~80℃ ‧HOLD UP TIME：16mS MINIMUM AT 115V FULL LOAD ‧EFFICIENCY：90% TYPICAL，AT FULL LOAD 230V ‧REMOTE ON/OFF CONTROL ‧LEAKAGE CURRENT: INPUT LEAKAGE CURRENT FROM LINE TO GROUND WILL BE LESS THAN 3.5MA RMS. MEASUREMENT WILL BE MADE AT 240 VAC AND 60HZ. ‧POWER GOOD SIGNAL：ON DELAY 100mS TO 500mS，OFF DELAY 1mS ‧OVER POWER PROTECTION：110～160% MAX ‧OVER VOLTAGE PROTECTION: +12V→ 13.2~15V ‧SHORT CIRCUIT PROTECTION: +12V, +5VSB ‧SAFETY : TO MEET UL, CUL, TUV, CCC *THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS. |
| MTBF(RoHS):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MTBF/Q1N-3400V(RoHS).pdf |
