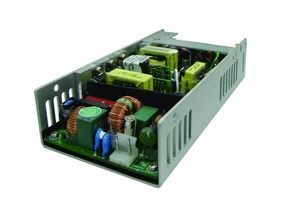

Q1N-2400K(400W)
| 製品種別 | 電源 (Zippy) |
|---|---|
| 電源の種類 | Open Frame |
| 製品説明 |
製品仕様
| wattage | 400W |
|---|---|
| solution | Server ,Workstation ,Storage System ,IPC |
| dimension_mm | 199x92x43 |
| dimension_inch | 7.83x3.62x1.69 |
| input_spec | VOLTAGE： 90～264VAC FULL RANGE FREQUENCY： 47～63HZ INPUT CURRENT：6A (RMS) FOR 115 VAC / 3A (RMS) FOR 230 VAC INRUSH CURRENT：30 AMPS @ 230 VAC (AT 25 DEGREES AMBIENT COLD START FOR EACH POWER UNIT) PFC: Up to the target of 90% @230V, full load |
| dc_output |
|
| features | ‧TEMPERATURE RANGE：OPERATING 0℃～40℃, STORAGE -20℃~80℃ ‧HOLD UP TIME：16mS MINIMUM AT 115V FULL LOAD ‧EFFICIENCY：The maximum power supply system efficiency shall be 90%, measured at nominal input voltage 230 V and full loading ‧REMOTE ON/OFF CONTROL ‧LEAKAGE CURRENT: INPUT LEAKAGE CURRENT FROM LINE TO GROUND WILL BE LESS THAN 3.5mA RMS. MEASUREMENT WILL BE MADE AT 240 VAC AND 60HZ. ‧OVER POWER PROTECTION：110～160% MAX ‧OVER VOLTAGE PROTECTION: +12V→ +13.2~+15V ‧SHORT CIRCUIT PROTECTION: +12V, +5VSB ‧SAFETY : TO MEET UL, CUL, TUV, CCC *THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS. |
| DRAWING:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/DRAWING/Q1NKMA00.pdf MTBF(RoHS):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MTBF/Q1N-2400K(RoHS).pdf CB:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CB/Q1N-2400K%20and%20Q1N-3400K%20CB.pdf TUV:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/TUV/Q1N-2400K%20and%20Q1N-3400K%20TUV.pdf CCC:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CCC/Q1N-2400K%20&%20Q1N-3400K%20CCC.pdf |
