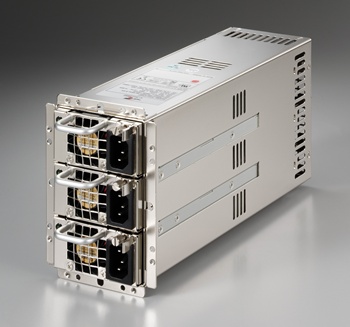

R3G-5950V4V(950W)
| 製品種別 | 電源 (Zippy) |
|---|---|
| 電源の種類 | N+1 Redundant |
| 製品説明 |
製品仕様
| wattage | 950W |
|---|---|
| solution | Server ,Workstation ,Storage System |
| dimension_mm | 276x83x127 |
| dimension_inch | 10.87x3.27x5 |
| input_spec | VOLTAGE： 90～264VAC FULL RANGE FREQUENCY： 47～63HZ INPUT CURRENT：8A/3A (115 / 230 VAC) POWER MODULE INRUSH CURRENT：35/70A MAX. FOR 115/230 VAC POWER MODULE |
| dc_output |
TOTAL OUTPUT MAX: 950W |
| features | * TEMPERATURE RANGE：OPERATING 0℃～40℃ * HOLD UP TIME：16mS MINIMUM AT FULL LOAD & NOMINAL INPUT VOLTAGE * DIELECTRIC WITHSTAND：INPUT/OUTPUT 1500 VAC FOR 60 SECOND INPUT TO FRAME GROUND 1500 VAC FOR 60 SECOND * EFFICIENCY：82% TYPICAL AT 115VAC, FULL LOAD * POWER GOOD SIGNAL：ON DELAY 100mS TO 500mS * OVER POWER PROTECTION：110% ~ 180% * OVER VOLTAGE PROTECTION：+5V→5.9V～6.7V +12V→13.0V～15.0V +3.3V→3.9V～4.3V SHORT CIRCUIT PROTECTION：SHUT DOWN AND LATCH OFF * EMI NOISE FILTER: FCC CLASS B, CISPR22 CLASS B * SAFETY: TO MEET UL, CUL, TUV, CCC * REMOTE ON/OFF CONTROL THE POWER SUPPLY SHALL ACCEPT A LOGIC OPEN COLLECTOR LEVEL WHICH WILL DISABLE/ENABLE ALL THE OUTPUT VOLTAGE (EXCLUDE +5V STANDBY). AS LOGIC LEVEL IS LOW，OUTPUTS VOLTAGE WERE ENABLE， AS LOGIC LEVEL IS HIGH，OUTPUTS VOLTAGE WERE DISABLE. * N+1 REDUNDANCY FUNCTION * HOT-SWAPPABLE FUNCTION * CURRENT/BALANCE LOAD SHARING DESIGN * +3.3V REMOTE SENSING * ISOLATION: BUILT-IN IN POWER MODULE * POWER FACTOR CORRENTION: ACTIVE (MEET IEC-1000-3-2) * COOLING: 40mm DC FANS (one module) * THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS. |
| DRAWING:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/DRAWING/R3GVMA00.pdf MANUAL:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MANUAL/R2G%20&%20R3G%20Series2008.doc CB:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CB/GIN-3600V,R2G-V,R3G-V%20CB.pdf TUV:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/TUV/GIN-3600V,R2G-V,R3G-V%20TUV.pdf CCC:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CCC/GIN-3600V,R2G-V,R3G-V%20CCC.pdf MTBF(ROHS):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MTBF/R3G-5950V4V(RoHS).pdf MTBFI(RoHS)(40℃)(NO FAN):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MTBF/R3G-5950V4V(RoHS)(40%e2%84%83)(NO%20FAN).pdf MTBFI(RoHS)(40℃):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MTBF/R3G-5950V4V(RoHS)(40%e2%84%83).pdf BSMI:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/BSMI/GIN-3600V,R2G-V,R3G-V%20BSMI.pdf |
