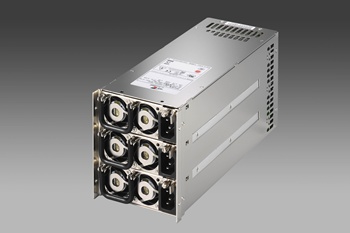

M1Z3-5A45V3V(1045W)
製品種別 | 電源 (Zippy) |
---|---|
電源の種類 | N+1 Redundant |
製品説明 |
製品仕様
wattage | 1045W |
---|---|
solution | Server ,Workstation ,Storage System |
dimension_mm | 265x101.2x125 |
dimension_inch | 10.43x3.98x4.92 |
input_spec | VOLTAGE: 90 ~ 264 VAC FULL RANGE. FREQUENCY: 47 ~ 63 Hz. INPUT CURRENT: 6A (RMS) FOR 230 VAC 16A (RMS) FOR 115 VAC INRUSH CURRENT: 35A MAX. FOR 115 VAC PER MODULE 40A MAX. FOR 230 VAC PER MODULE |
dc_output |
|
features | * TEMPERATURE RANGE: OPERATING 0℃ ~ 50℃, STORAGE –20℃ ~ 80℃ * HOLD UP TIME: 16 ms MINIMUM AT FULL LOAD & NORMAL INPUT VOLTAGE * EFFICIENCY: 78% TYPICAL AT 115VAC FULL LOAD * REMOTE ON/OFF CONTROL * POWER GOOD SIGNAL: ON DELAY 100 ms TO 500 ms, OFF DELAY 1 ms * OVER POWER PROTECTION: 110~160% * OVER VOLTAGE PROTECTION: +5V→5.7~6.5V, +3.3V→4.0~5.7V, +12V→14.3~17.3V * OVER CURRENT PROTECTION: +5V, +12V, +3.3V → 110~160% * SHORT CIRCUIT PROTECTION: PLACED ON +5V, +3.3V, +12V OUTPUT TO DC RETURN SHALL CAUSE NO DAMAGE AND POWER SUPPLY LATCH. -12V, +5VSB SHORT CIRCUIT TO DC RETURN SHALL CAUSE NO DAMAGE. * SAFETY: TO MEET UL, CUL, TUV, CCC * WARNING METHOD: BUZZER, TTL *THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS. |
CB:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CB/M1ZX-V%20CB.pdf TUV:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/TUV/M1ZX-V%20TUV.pdf DRAWING:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/DRAWING/M1Z3VMA00.pdf CCC:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CCC/M1ZX-V%20CCC.pdf MTBF(ROHS):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MTBF/M1Z3-5A45V3V(RoHS).pdf |
