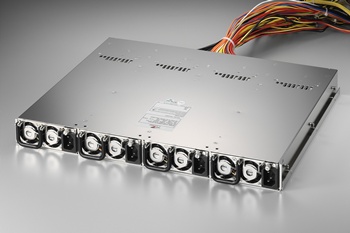

M1W4-5L80V3H(2180W)
| 製品種別 | 電源 (Zippy) |
|---|---|
| 電源の種類 | N+1 Redundant |
| 製品説明 |
製品仕様
| wattage | 2180W |
|---|---|
| solution | Server ,Workstation ,Storage System |
| dimension_mm | 340x422x43 |
| dimension_inch | 13.39x16.61x1.69 |
| input_spec | VOLTAGE：90～264VAC FULL RANGE FREQUENCY：47～63HZ INPUT CURRENT：30/15A FOR 115/230VAC INRUSH CURRENT (PER POWER MODULE)：15/30A MAX. FOR 115/230VAC (25℃) |
| dc_output |
TOTAL OUTPUT POWER NOT EXCEED 2180W. |
| features | * TEMPERATURE RANGE：OPERATING 0℃～50℃，STORAGE -20℃～80℃ * HOLD UP TIME：16mS IN REGULATION LIMIT AT 90 VAC INPUT VOLTAGE * DIELECTRIC WITHSTAND：INPUT/OUTPUT 1500 VAC FOR 1 MINUTE INPUT TO FRAME GROUND 1500 VAC FOR 1 MINUTE * EFFICIENCY：84% TYPICAL，AT FULL LOAD 115VAC * POWER GOOD SIGNAL：ON DELAY 100mS TO 550mS * OVER POWER PROTECTION：110～150% MAX * OVER VOLTAGE PROTECTION：+5V→5.7V～6.5V，+3.3V→3.7V～4.1V ，+12V→12.8 V～13.9V * SHORT CIRCUIT PROTECTION: +5V,+12V,+3.3V,-12V,+5VSB * REMOTE ON / OFF CONTROL * REMOTE SENSING DESIGN * BALANCE LOAD SHARING DESIGN * HOT-SWAPPABLE/HOT PLUGGABLE REDUNDANCY FUNCTION * ISOLATION: BUILT-IN THE POWER MODULE * FAULTY ALARM METHODS: LED, BUZZER, TTL SIGNAL * AC INLET IN EACH MODULE * EMI NOISE FILTER: CISPR 22 CLASS B * MEET IEC-1000-3-2 CLASS D (ACTIVE PFC) * SAFETY：TO MEET UL, CUL, TUV *THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS. |
| CB:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CB/M1W-2810V,M1W2-V,M1W4-V%20CB.pdf TUV:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/TUV/M1W-2810V,M1W2-V,M1W4-V%20TUV.pdf CCC:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CCC/M1W-2810V,M1W2-V,M1W4-V%20CCC.pdf MTBF(ROHS):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MTBF/M1W4-5L80V3H(RoHS).pdf DRAWING:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/DRAWING/M1W4VMA00.pdf |
