製品情報

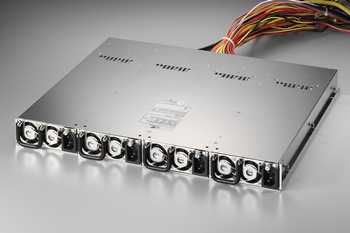

M1W4-5O50V3H(2450W)

製品種別 電源 (Zippy)
電源の種類 N+1 Redundant
製品説明

製品仕様

wattage 2450W
solution Server ,Workstation ,Storage System
dimension_mm 340x422x43
dimension_inch 13.39x16.61x1.69
input_spec VOLTAGE:90~264VAC FULL RANGE FREQUENCY:47~63HZ INPUT CURRENT:42/21A FOR 115/230VAC INRUSH CURRENT (PER POWER MODULE):15/30A MAX. FOR 115/230VAC (25℃)
dc_output Output VoltageOutput Current Min.Output Current Max.Regulation LoadRegulation LineOutput Ripple & Noise Max.[P-P]+5V124±5%±1%50mV+12V6201±5%±1% 120mV -12V01.5±5%±1%120mV+3.3V124±5%±1%50mV+5VSB0.14±5%±1%50mV
TOTAL MAX OUTPUT OF +5V AND +3.3V NOT EXCEED 135W.
TOTAL OUTPUT POWER NOT EXCEED 2450W.


features * TEMPERATURE RANGE:OPERATING 0℃~50℃,STORAGE -20℃~80℃
* HOLD UP TIME:16mS IN REGULATION LIMIT AT 90 VAC INPUT VOLTAGE
* DIELECTRIC WITHSTAND:INPUT/OUTPUT 1500 VAC FOR 1 MINUTE INPUT TO FRAME GROUND 1500 VAC FOR 1 MINUTE
* EFFICIENCY:84% TYPICAL,AT FULL LOAD 115VAC
* POWER GOOD SIGNAL:ON DELAY 100mS TO 550mS
* OVER POWER PROTECTION:110~150% MAX
* OVER VOLTAGE PROTECTION:+5V→5.7V~6.5V,+3.3V→3.7V~4.1V ,+12V→12.8 V~13.9V
* SHORT CIRCUIT PROTECTION: +5V,+12V,+3.3V,-12V,+5VSB
* REMOTE ON / OFF CONTROL
* REMOTE SENSING DESIGN
* BALANCE LOAD SHARING DESIGN
* HOT-SWAPPABLE/HOT PLUGGABLE REDUNDANCY FUNCTION
* ISOLATION: BUILT-IN THE POWER MODULE
* FAULTY ALARM METHODS: LED, BUZZER, TTL SIGNAL
* AC INLET IN EACH MODULE
* EMI NOISE FILTER: CISPR 22 CLASS B
* MEET IEC-1000-3-2 CLASS D (ACTIVE PFC)
* SAFETY:TO MEET UL, CUL, TUV


*THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS.
pdf CB:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CB/M1W-2810V,M1W2-V,M1W4-V%20CB.pdf TUV:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/TUV/M1W-2810V,M1W2-V,M1W4-V%20TUV.pdf CCC:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CCC/M1W-2810V,M1W2-V,M1W4-V%20CCC.pdf MTBF(ROHS):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MTBF/M1W4-5O50V3H(RoHS).pdf DRAWING:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/DRAWING/M1W4VMA00.pdf
