製品情報

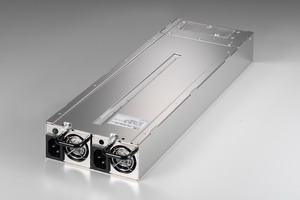

SPH2-5A00V4H(1000W)

製品種別 電源 (Zippy)
電源の種類 N+1 Redundant
製品説明

製品仕様

wattage 1000W
solution Server ,Workstation ,Storage System
dimension_mm 404x127x49
dimension_inch 15.91x5x1.93
input_spec VOLTAGE: 90~264VAC FULL RANGE FREQUENCY: 47~63HZ INPUT CURRENT (PER POWER MODULE):12/6A FOR 115/230VAC INRUSH CURRENT (PER POWER MODULE):15/30A MAX. FOR 115/230VAC (25℃)
dc_output Output VoltageOutput Current Min.Output Current Max.Regulation LoadRegulation LineOutput Ripple & Noise Max.[P-P]+5V022±5%±1%50mV+12V254±5%±1% 120mV -12V00.5±5%±1%120mV+3.3V022±5%±1%50mV+5VSB0.13±5%±1%50mV


features * TEMPERATURE RANGE:OPERATING 0℃~50℃
* HOLD UP TIME:11mS MIN.
* DIELECTRIC WITHSTAND:INPUT/OUTPUT 1500 VAC FOR 1 MINUTEINPUT TO FRAME GROUND 1500 VAC FOR 1 MINUTE
* EFFICIENCY(PER SET):POWER SUPPLY EFFICIENCY TYPICAL 84% AT115V,12V/54A 5VSB/0.4A
* POWER SUPPLY EFFICIENCY TYPICAL 86% AT230V,12V/54A 5VSB/0.4A
* POWER GOOD SIGNAL:ON DELAY 100mS TO 500mS
* OVER VOLTAGE PROTECTION:+3.3V→3.7V~4.1V,+5V→5.7V~6.5V ,+12V→12.8 V~13.9V
* REMOTE ON / OFF CONTROL
* REMOTE SENSING DESIGN
* BALANCE LOAD SHARING DESIGN
* HOT-SWAPPABLE/HOT PLUGGABLE REDUNDANCY FUNCTION
* ISOLATION: BUILT-IN THE POWER MODULE
* FAULTY ALARM METHODS: LED, BUZZER, TTL SIGNAL
* EMI NOISE FILTER: FCC CLASS A , CISPR 22 CLASS A
* MEET IEC-1000-3-2 CLASS D (ACTIVE PFC)
* SAFETY:MEET UL6950,CSA22.2NO/60950,TUV IEC60950


*THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS.
pdf MTBF(RoHS):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MTBF/SPH2-5A00V4H(RoHS).pdf CB:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CB/SPH,%20SPG,%20PSS%20series%20CB.pdf TUV:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/TUV/SPH,%20SPG,%20PSS%20series%20TUV.pdf BSMI:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/BSMI/SPH2,%20SPG2,%20PSS2%20series%20BSMI.pdf CCC:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CCC/SPH2,%20SPG2,%20PSS2,PSG2%20series%20CCC.pdf
