製品情報

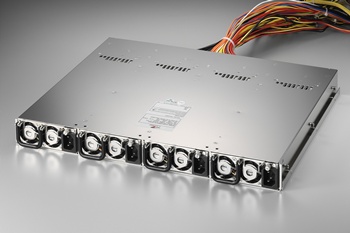

MTW4-5O30V3H(2430W)

製品種別 電源 (Zippy)
電源の種類 N+1 Redundant
製品説明

製品仕様

wattage 2430W
solution Server ,Workstation ,Storage System ,IPC ,Communication ,Networking
dimension_mm 340x422x43
dimension_inch 13.39x16.61x3.27
input_spec VOLTAGE: 90~264VAC FULL RANGE FREQUENCY: 47~63HZ INPUT CURRENT (PER POWER MODULE):36/16A FOR 115/230VAC INRUSH CURRENT (PER POWER MODULE):40/60A MAX. FOR 115/230VAC (25℃)
dc_output Output VoltageOutput Current Min.Output Current Max.Regulation LoadRegulation LineOutput Ripple & Noise Max.[P-P]+5V1.586±5%±1%50mV+12V6.0194±5%±1% 120mV -12V0.11.6±5%±1%120mV+3.3V1.597±5%±1%50mV+5VSB0.37.0±5%±1%50mV
* TOTAL MAX OUTPUT OF +5V AND +3.3V NOT EXCEED 540W.
* TOTAL OUTPUT MAX: 2430W.


features * TEMPERATURE RANGE:OPERATING 0℃~45℃, STORAGE -20℃~80℃
* HOLD UP TIME:16mS IN REGULATOIN LIMIT AT 90VAC INPUT VOLTAGE
* DIELECTRIC WITHSTAND:INPUT/OUTPUT 1500 VAC FOR 1 MINUTE INPUT TO FRAME GROUND 1500 VAC FOR 1 MINUTE
* EFFICIENCY:>80% AT 115VAC, 30%~100% MAX LOAD
* POWER GOOD SIGNAL:ON DELAY 100mS TO 500Ms
* OVER POWER PROTECTION: 110~160%
* OVER VOLTAGE PROTECTION:+3.3V→3.9V~4.7V,+5V→5.7V~6.5V ,+12V→12.8 V~13.9V
* OVER CURRENT PROTECTION: +5V,+12V,+3.3V 110~ 160% AT FULL LOAD
* SHORT CIRCUIT PROTECTION: +5V, +3.3V, +12V, -12V
* REMOTE ON / OFF CONTROL
* BALANCE LOAD SHARING DESIGN
* HOT-SWAPPABLE/HOT PLUGGABLE REDUNDANCY FUNCTION
* ISOLATION: BUILT-IN THE POWER MODULE
* FAULTY ALARM METHODS: LED, BUZZER, TTL SIGNAL
* COOLING:38*28mm, TWO DC FAN (PER MODULE)
* EMI NOISE FILTER: FCC CLASS B , CISPR 22 CLASS B
* MEET IEC-1000-3-2 CLASS D (ACTIVE PFC)
* SAFETY:TO MEET UL, TUV, CB IEC60950


*THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS.
pdf CB:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CB/MTW-V%20&%20MTW2-V%20&%20MTW4-V%20CB.pdf TUV:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/TUV/MTW-V%20&%20MTW2-V%20&%20MTW4-V%20TUV.pdf DRAWING:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/DRAWING/MTW4MA00.pdf MTBF(RoHS):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MTBF/MTW4-5O30V3H(RoHS).pdf
