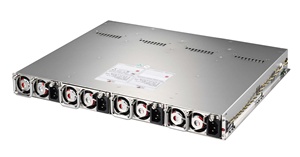

M1Z4-5D50V4H(1350W)
| 製品種別 | 電源 (Zippy) |
|---|---|
| 電源の種類 | N+1 Redundant |
| 製品説明 |
製品仕様
| wattage | 1350W |
|---|---|
| solution | Server ,Workstation ,Storage System |
| dimension_mm | 310x422x43 |
| dimension_inch | 12.2x16.61x1.69 |
| input_spec | VOLTAGE: 90 ~ 264 VAC FULL RANGE. FREQUENCY: 47 ~ 63 Hz. INPUT CURRENT: 8A (RMS) FOR 230 VAC 20A (RMS) FOR 115 VAC INRUSH CURRENT: 35A MAX. FOR 115 VAC PER MODULE 40A MAX. FOR 230 VAC PER MODULE POWER FACTOR CORRECTION: PFC CAN REACH THE TARGET OF 95% AT 115/230VAC, FULL LOAD. |
| dc_output |
|
| features | * TEMPERATURE RANGE: OPERATING 0℃ ~ 50℃, STORAGE –20℃ ~ 80℃ * HOLD UP TIME: 16 ms MINIMUM AT FULL LOAD & NORMAL INPUT VOLTAGE * EFFICIENCY: 80% TYPICAL AT 115VAC FULL LOAD * POWER GOOD SIGNAL: ON DELAY 100 ms TO 500 ms, OFF DELAY 1 ms * OVER POWER PROTECTION: 110~160% * OVER VOLTAGE PROTECTION: +5V→5.7V~6.5V, +3.3V→4.0V~5.7V, +12V→14.3V~17.3V * OVER CURRENT PROTECTION: +5V, +12V, +3.3V * SHORT CIRCUIT PROTECTION: +5V, +3.3V, +12V, -12V, +5VSB * SAFETY: TO MEET UL, CUL, TUV, CCC * EMI NOISE FILTER: FCC CLASS A, CISPR22 CLASS A *THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS. |
