製品情報

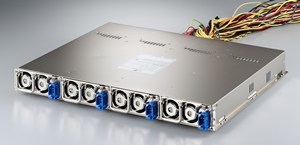

DMTW4-5M10V3H(2210W)

製品種別 電源 (Zippy)
電源の種類 N+1 Redundant DC
製品説明

製品仕様

wattage 2210W
solution Server ,Workstation ,Storage System ,IPC ,Communication ,Networking
dimension_mm 340x422x43
dimension_inch 13.4x16.6x1.7
input_spec VOLTAGE: 36 ~ 72VDC (WITH +/-10 TOLERNCE) STEADY-STATE CURRENT: 30/15AMPS AT ANY LOW/HIGH RANGE INPUT VOLTAGE INRUSH CURRENT: 35AMPS @ 48VDC
dc_output Output VoltageOutput Current Min.Output Current Max.Regulation LoadRegulation LineOutput Ripple & Noise Max.[P-P]+5V1.586±5%±50mV50mV+12V6180±5%±50mV 120mV -12V0.11.6±5%±50mV120mV+3.3V1.597±5%±50mV50mV+5VSB0.37±5%±50mV50mV
* +5V AND +3.3V TOTAL OUTPUT MAX: 540W

features * TEMPERATURE RANGE: OPERATING 0℃ ~ 45℃, STORAGE –20℃ ~ 80℃
* HOLD UP TIME: 1ms MINIMUM AT FULL LOAD & -48VDC INPUT VOLTAGE
* DIELECTRIC WITHSTANDING: INPUT/OUTPUT 1500 VAC FOR 1 MINUTE
* EFFICIENCY: >80% TYPICAL AT 48VDC, 50~100% MAX LOAD
* POWER GOOD SIGNAL: ON DELAY 100 ms TO 500 ms, OFF DELAY 1 ms
* OVER LOAD PROTECTION: 110 ~ 180% MAX
* OVER VOLTAGE PROTECTION:+5V → 6.5V ~ 8.5V, +3.3V → 4.3V ~ 6.3V, +12V → 14.3V ~ 18.5V
* OVER CURRENT PROTECTION: +5V
+12V
+3.3V
* SHORT CIRCUT PROTECTION
* EMI: MEET FCC CLASS A, CISPR 22 CLASS A
* SAFETY: MEET UL&CUL, TUV, CCC
* REMOTE ON / OFF CONTROL
* DC INLET IN EACH MODULE


* THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS.
