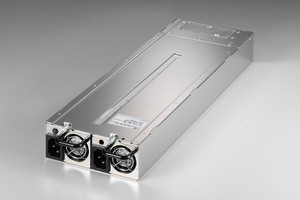

PSS2-5C00V3H(1200W)
| 製品種別 | 電源 (Zippy) |
|---|---|
| 電源の種類 | N+1 Redundant |
| 製品説明 |
製品仕様
| wattage | 1200W |
|---|---|
| solution | Server ,Workstation ,Storage System ,IPC ,Blade server ,Communication |
| dimension_mm | 360x127x44 |
| dimension_inch | 14.17x5x1.73 |
| input_spec | VOLTAGE: 90~264 VAC FULL RANGE FREQUENCY: 47~63Hz INPUT CURRENT: 15/7.5A MAX AT ANY LOW/HIGH INPUT VOLTAGE INRUSH CURRENT: 15/30A @ 115/230VAC (25℃) POWER FACTOR CORRECTION: 95% @ 110V, FULL LOAD |
| dc_output |
|
| features | * TEMPERATURE RANGE: OPERATING: 0℃ ~ 50℃ STORAGE: -20℃ ~ 80℃ * HOLD UP TIME: 9 ms MINIMUM AT FULL LOAD & NORMAL INPUT VOLTAGE * EFFICIENCY: TYPICAL 83% AT 115V, 12V/83A 5VSB/0.8A; TYPICAL 86% AT 230V, 12V/83A 5VSB/0.8A FULL LOAD * POWER GOOD SIGNAL: ON DELAY 100 ms TO 500 ms, OFF DELAY 1 ms * OVER POWER PROTECTION: 110~150% * OVER VOLTAGE PROTECTION: +3.3V→3.7~4.1V, +5V→5.7~6.5V, +12V→12.8~13.9V * SHORT CIRCUIT PROTECTION: +5V, +3.3V, +12V, -12V * EMI NOISE FILTER: FCC CLASS A, CISPR22 CLASS A * 3.3V / 5V REMOTE SENSING * SAFETY: UL, CUL, TUV *THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS. |
| DRAWING:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/DRAWING/PSS2MA00.pdf CB:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CB/SPH,%20SPG,%20PSS%20series%20CB.pdf TUV:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/TUV/SPH,%20SPG,%20PSS%20series%20TUV.pdf CCC:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CCC/SPH2,%20SPG2,%20PSS2,PSG2%20series%20CCC.pdf MTBF(ROHS):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MTBF/PSS2-5C00V3H(RoHS).pdf |
