製品情報

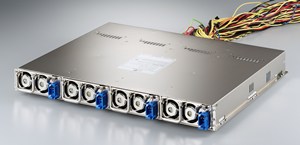

BMTW4-5G20V3H(1620W)

製品種別 電源 (Zippy)
電源の種類 N+1 Redundant DC
製品説明

製品仕様

wattage 1620W
solution Server ,Workstation ,Storage System ,IPC ,Communication ,Networking
dimension_mm 340x422x43
dimension_inch 13.4x16.6x1.7
input_spec VOLTAGE: 19 ~ 36VDC, NOMAL 24VDC STEADY-STATE CURRENT: 135/63AMPS AT ANY LOW/HIGH RANGE INPUT VOLTAGE INRUSH CURRENT: 50AMPS @ 24VDC
dc_output
Output Voltage Output Current Min. Output Current Max. Regulation Load Regulation Line Output Ripple & Noise Max.[P-P]
+5V 0.5 60 ±5% ±50mV 50mV
+12V 2 135 ±5% ±50mV 120mV
-12V 0 1.2 ±5% ±50mV 120mV
+3.3V 0.5 68 ±5% ±50mV 50mV
+5VSB 0.1 5 ±5% ±50mV 50mV
* +5V AND +3.3V TOTAL OUTPUT MAX: 540W
* TOTAL OUTPUT MAX: 1620W (AT 18V ONLY 1490W)


features * TEMPERATURE RANGE: OPERATING 0℃ ~ 40℃, STORAGE –20℃ ~ 80℃
* HOLD UP TIME: 1ms MINIMUM AT FULL LOAD & 24VDC INPUT VOLTAGE
* DIELECTRIC WITHSTANDING: INPUT/OUTPUT 1500 VAC FOR 1 MINUTE
* EFFICIENCY: >80% TYPICAL AT 24VDC, 30~100% MAX LOAD
* POWER GOOD SIGNAL: ON DELAY 100 ms TO 500 ms, OFF DELAY 1 ms
* OVER LOAD PROTECTION: 110 ~ 160% MAX
* OVER VOLTAGE PROTECTION:+5V → 5.9V ~ 6.7V, +3.3V → 3.9V ~ 4.3V, +12V → 13.3V ~ 15V
* OVER CURRENT PROTECTION: +5V
+12V
+3.3V
* SHORT CIRCUT PROTECTION
* EMI: MEET FCC CLASS A, CISPR 22 CLASS A
* SAFETY: MEET UL&CUL, TUV, CCC
* REMOTE ON / OFF CONTROL
* DC INLET IN EACH MODULE


* THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS.
