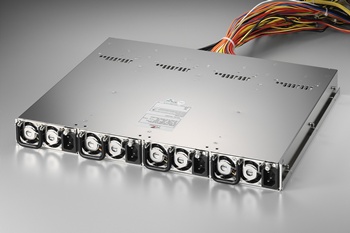

MTW4-5F50V3H(1550W)
| 製品種別 | 電源 (Zippy) |
|---|---|
| 電源の種類 | N+1 Redundant |
| 製品説明 |
製品仕様
| wattage | 1550W |
|---|---|
| solution | Server ,Workstation ,Storage System ,IPC ,Communication ,Networking |
| dimension_mm | 340x422x43 |
| dimension_inch | 13.39x16.61x3.27 |
| input_spec | VOLTAGE： 90～264VAC FULL RANGE FREQUENCY： 47～63HZ INPUT CURRENT (PER POWER MODULE)：24 / 11 AMPSMAXIMUM AT ANY LOW/HIGH RANGE INPUT VOLTAGE INRUSH CURRENT (PER POWER MODULE)：40/60A MAX. FOR 115/230VAC (25℃) |
| dc_output |
* TOTAL OUTPUT MAX: 1550W. |
| features | * TEMPERATURE RANGE：OPERATING 0℃～45℃, STORAGE -20℃~80℃ * HOLD UP TIME：16mS IN REGULATOIN LIMIT AT 90VAC INPUT VOLTAGE * DIELECTRIC WITHSTAND：INPUT/OUTPUT 1500 VAC FOR 1 MINUTE INPUT TO FRAME GROUND 1500 VAC FOR 1 MINUTE * EFFICIENCY：>80% AT 115VAC, 30%~100% MAX LOAD * POWER GOOD SIGNAL：ON DELAY 100mS TO 500Ms * OVER POWER PROTECTION: 110~160% * OVER VOLTAGE PROTECTION：+3.3V→3.9V～4.7V，+5V→5.7V～6.5V ，+12V→12.8 V～13.9V * OVER CURRENT PROTECTION: +5V,+12V,+3.3V 110~ 160% AT FULL LOAD * SHORT CIRCUIT PROTECTION: +5V, +3.3V, +12V, -12V * REMOTE ON / OFF CONTROL * BALANCE LOAD SHARING DESIGN * HOT-SWAPPABLE/HOT PLUGGABLE REDUNDANCY FUNCTION * ISOLATION: BUILT-IN THE POWER MODULE * FAULTY ALARM METHODS: LED, BUZZER, TTL SIGNAL * COOLING:38*28mm, TWO DC FAN (PER MODULE) * EMI NOISE FILTER: FCC CLASS B , CISPR 22 CLASS B * MEET IEC-1000-3-2 CLASS D (ACTIVE PFC) * SAFETY：TO MEET UL, TUV, CB IEC60950 *THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS. |
| CB:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CB/MTW-V%20&%20MTW2-V%20&%20MTW4-V%20CB.pdf TUV:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/TUV/MTW-V%20&%20MTW2-V%20&%20MTW4-V%20TUV.pdf DRAWING:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/DRAWING/MTW4MA00.pdf MTBF(RoHS):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MTBF/MTW4-5F50V3H(RoHS).pdf FCC:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/FCC/MTW4-5F50V3H%20FCC.pdf |
