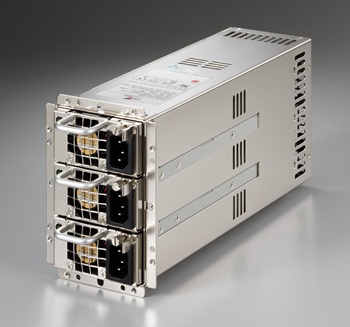

R3G-5500V4V(500W)

製品種別 電源 (Zippy)
電源の種類 N+1 Redundant
製品説明

製品仕様

wattage 500W
solution Server ,Workstation ,Storage System
dimension_mm 276x83x127
dimension_inch 10.87x3.27x5
input_spec VOLTAGE: 90~264VAC FULL RANGE FREQUENCY: 47~63HZ INPUT CURRENT:8A/3A (115 / 230 VAC) POWER MODULE INRUSH CURRENT:35A/70A MAX. FOR 115/230 VAC POWER MODULE
dc_output Output VoltageOutput Current Min.Output Current Max.Regulation LoadRegulation LineOutput Ripple & Noise Max.[P-P]+5V0.532±5%±1%50mV+12V263±5%±1% 120mV -12V0.21.2±10%±1%150mV+3.3V0.532±5%±1%50mV+5VSB0.34±5%±1%50mV
TOTAL CURRENT OF +5V AND +3.3V NOT EXCEED 170W
TOTAL OUTPUT MAX: 500W


features * TEMPERATURE RANGE:OPERATING 0℃~40℃, STORAGE -2℃0~80℃
* HOLD UP TIME:16mS MINIMUM AT FULL LOAD & NOMINAL INPUT VOLTAGE
* DIELECTRIC WITHSTAND:INPUT/OUTPUT 1500 VAC FOR 60 SECOND INPUT TO FRAME GROUND 1500 VAC FOR 60 SECOND
* EFFICIENCY:>80% TYPICAL AT 115VAC, 20%~100% MAX LOAD
* POWER GOOD SIGNAL:ON DELAY 100mS TO 500mS
* OVER POWER PROTECTION:110% ~ 180%
* OVER VOLTAGE PROTECTION:+5V→5.9V~6.7V
+12V→13.0V~15.0V
+3.3V→3.9V~4.3V
* SHORT CIRCUIT: +5V, +3.3V, +12V, +5VSB, -12V
* OVER CURRENT PROTECTION: +3.3V→35.2~48A, +5V→35.2~48A, +12V→69.3~100.8A
* SAFETY: TO MEET UL, CUL, TUV, CCC
* REMOTE ON/OFF CONTROL
* N+1 REDUNDANCY FUNCTION
* LEAKAGE CURRENT: 3.5MA. MAX. AT NOMINAL VOLTAGE 250VAC
* COOLING: 40mm DC FANS (one module)


*THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS.
pdf CB:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CB/GIN-3600V,R2G-V,R3G-V%20CB.pdf TUV:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/TUV/GIN-3600V,R2G-V,R3G-V%20TUV.pdf CCC:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CCC/GIN-3600V,R2G-V,R3G-V%20CCC.pdf MTBF(ROHS):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MTBF/R3G-5500V4V(RoHS).pdf BSMI:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/BSMI/GIN-3600V,R2G-V,R3G-V%20BSMI.pdf
