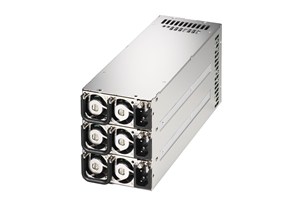

MTW3-5H00V3V(1700W)

製品種別 電源 (Zippy)
電源の種類 N+1 Redundant
製品説明

製品仕様

wattage 1700W
solution Server ,Workstation ,Storage System
dimension_mm 300x101x125
dimension_inch 11.81x3.98x4.92
input_spec VOLTAGE: 100 ~ 240 VAC FULL RANGE.FREQUENCY: 47 ~ 63 Hz.INPUT CURRENT: 27 / 12 amps maximum at any low/high range input voltageINRUSH CURRENT: 40A MAX. FOR 115 VAC PER MODULE / 60A MAX. FOR 230 VAC PER MODULEPOWER FACTOR CORRECTION: PFC can reach the target of 95% @230V, full load
dc_output Output VoltageOutput Current Min.Output Current Max.Regulation LoadRegulation LineOutput Ripple & Noise Max.[P-P]+5V0.560±5%±1%50mV+12V2136±5%±1% 120mV -12V01.2±5%±1%120mV+3.3V0.568±5%±1%50mV+5VSB0.15.0±5%±1%50mV
features * TEMPERATURE RANGE: OPERATING 0℃ ~ 45℃, STORAGE –20℃ ~ 80℃
* HOLD UP TIME: 16mS MINIMUM AT FULL LOAD & NORMAL INPUT VOLTAGE
* EFFICIENCY: Typical >80 % at 115V, 30%~100% max load
* REMOTE ON/OFF CONTROL
* OVER POWER PROTECTION: 110~160%
* OVER VOLTAGE PROTECTION: +5V→5.7~6.5V, +3.3V→3.9~4.7V, +12V→12.8~13.9V
* OVER CURRENT PROTECTION: +5V, +12V, +3.3V → 110~160% * SHORT CIRCUIT PROTECTION
* SAFETY: TO MEET UL, CUL, TUV, CCC
* WARNING METHOD: BUZZER, TTL


*THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS.
